WPG SA has introduced a 1.2KW BLDC Motor Inverter Reference Design platform, specifically engineered for Industrial Water Pump Systems and Residential Air-Conditioning applications.
►场景应用图

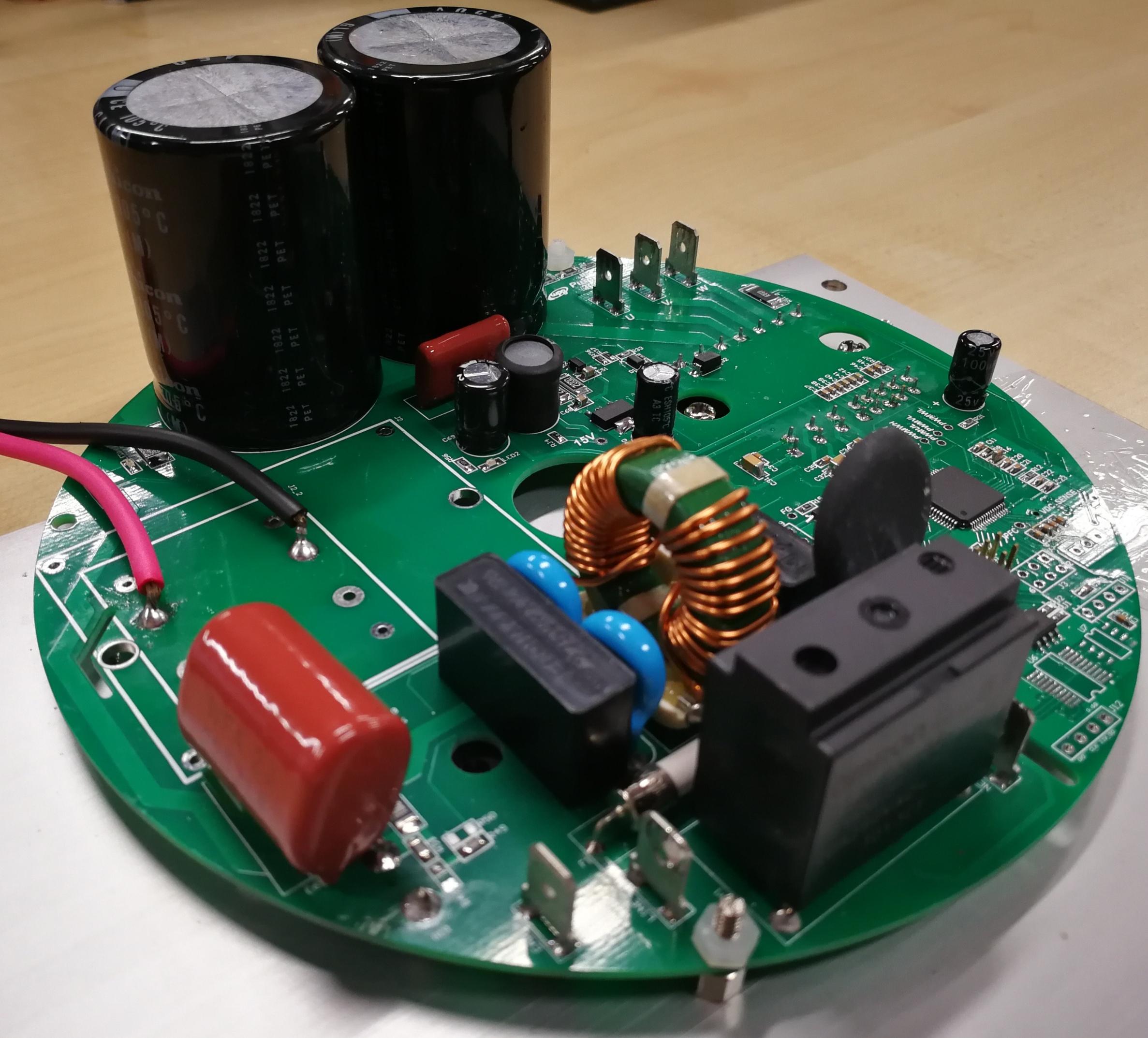

►产品实体图

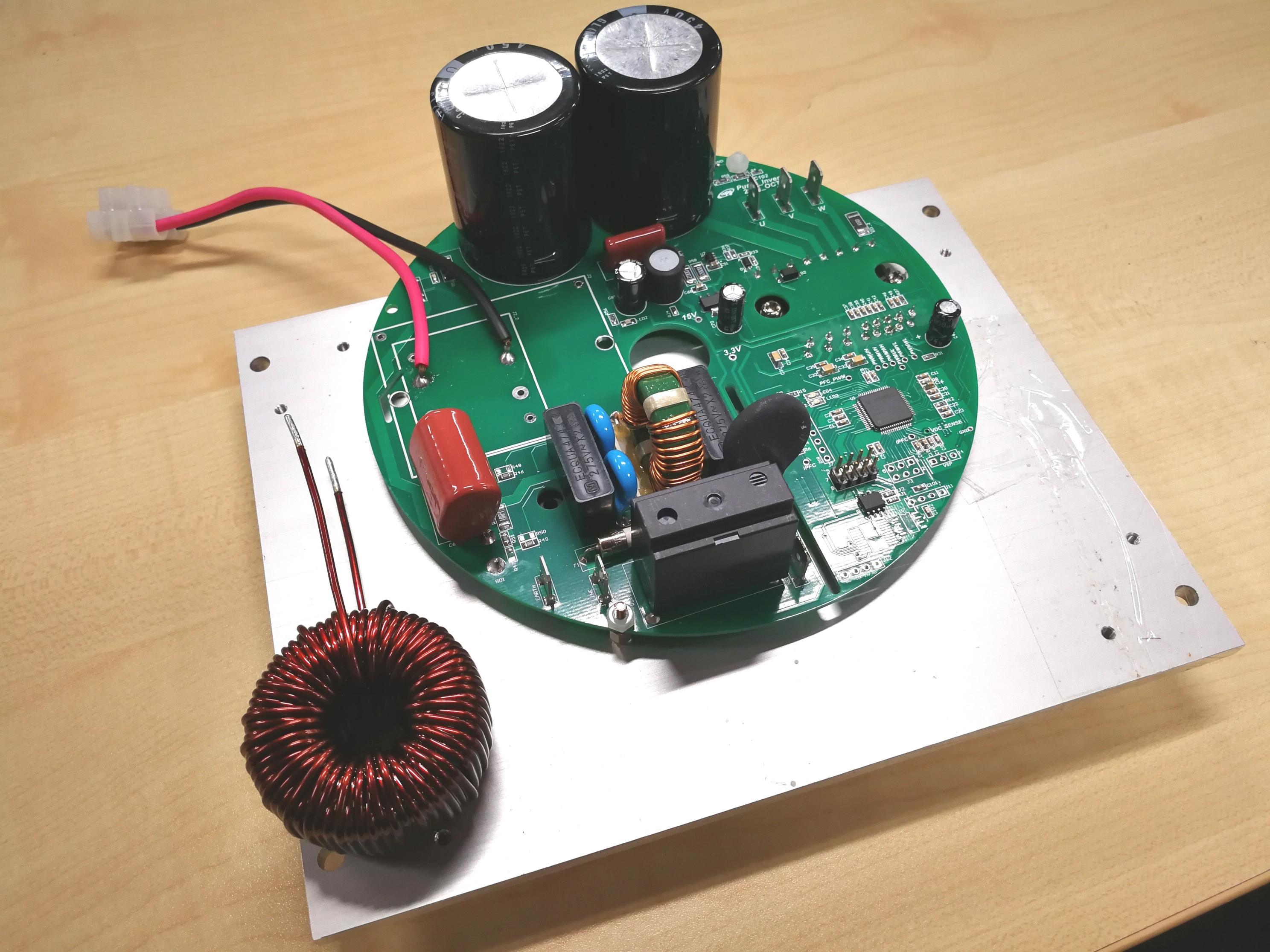

►展示板照片

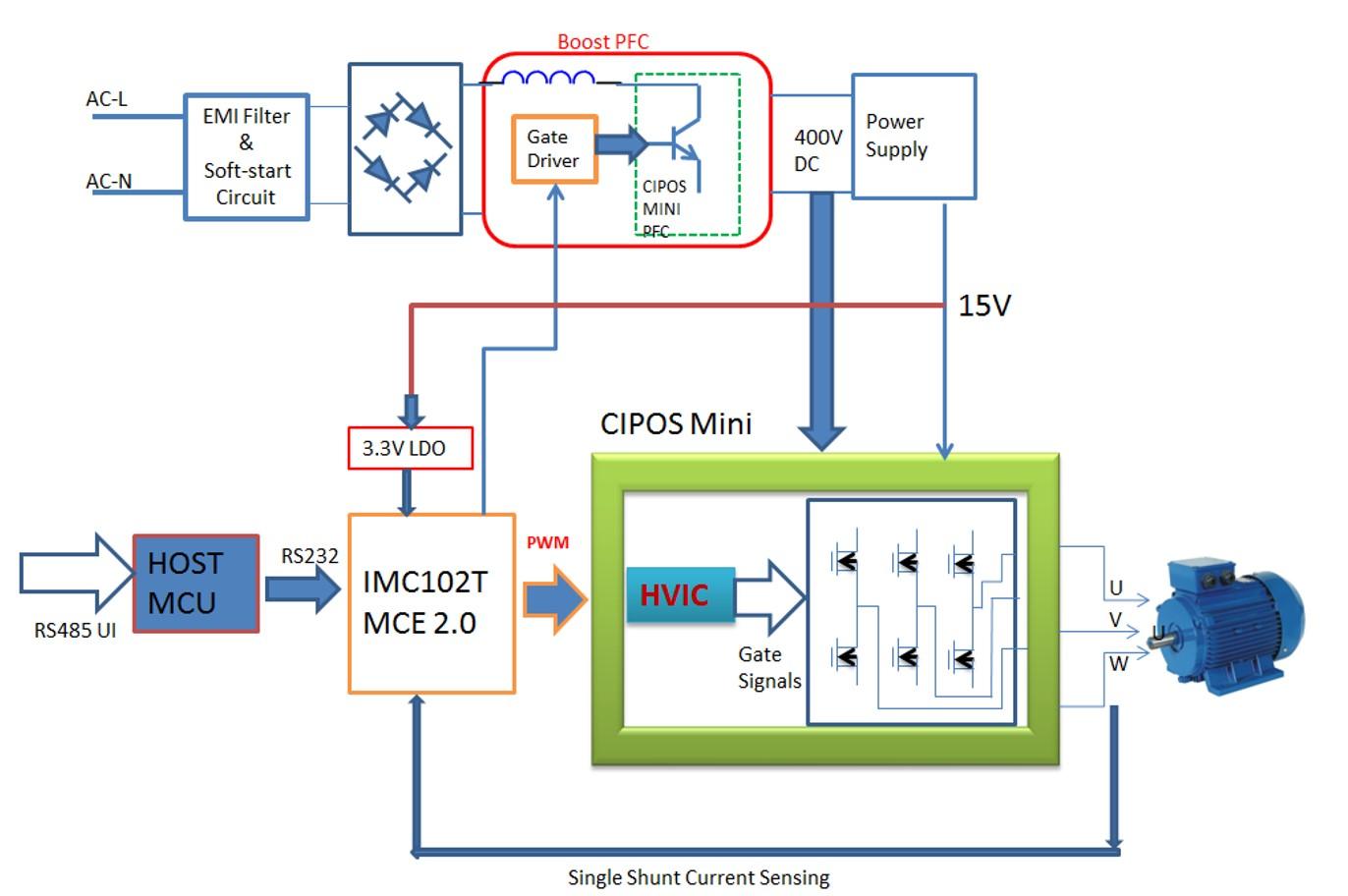

►方案方块图
►核心技术优势
Infineon iMotion IMC Controller: - Configurable motor control engine - Fast time-to-market - Support functional safety requirements according to the IEC/UL 60730 (‘Class B’) Infineon CIPOS Mini IPM: - Highly integrated power stage solution - High efficiency - Increase reliability, optimize on overall system size and cost
►方案规格
1. Input: 230Vac 50hz 2. Maximum Input Power: 1.2KW ~ 1.5HP 3. THD: <10% 4. Power Factor Correction: >0.94 5. Speed Control Interface: RS485 via AUX Controller, Analog VSP, PWM 6. Protection: OVP, OCP, OTP
