基于MediaTek MT6381 Sensio智能健康心率血压计方案

随着全球越来越多的国家进入老龄化,以及年轻人工作节奏加快,工作强大加大,健康问题更加凸显,其基于业界首款六合一智能健康芯片MT6381应运而生,MT6381 模块仅有 6.8×4.9mm 大,靠着内建的光学、红外线感测器和多个电极,只要将手指放在上面 60 秒,就能获得包括了心率、心率变异、血压趋势、血氧饱和度、心电图、和光体积脉搏波图在内的六种生理数据。

场景应用图

sceneryUrl

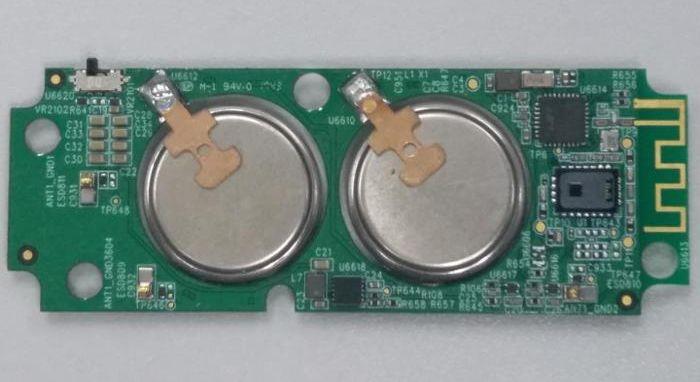

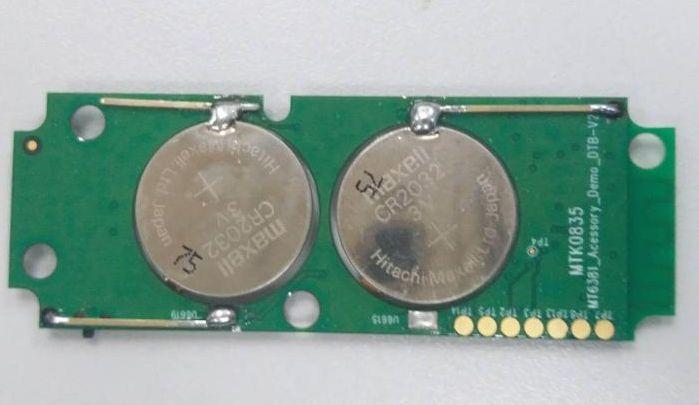

展示版照片

frontUrlbackUrl

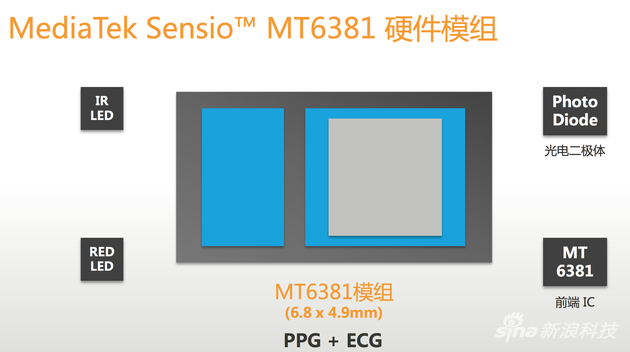

方案方块图

funcUrl

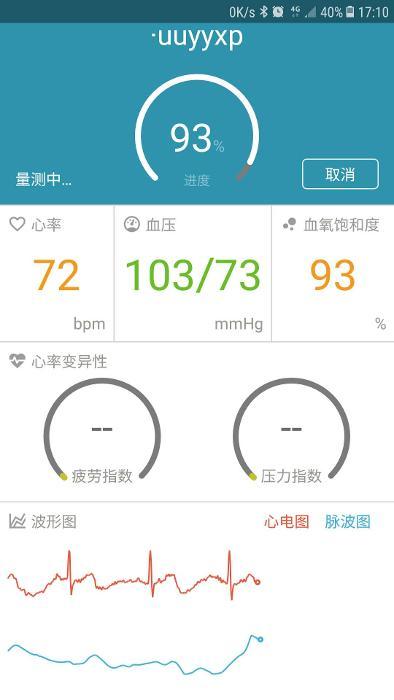

APP UI

other1Url

核心技术优势

1、2-in-1 bio-sesing AFE (Voltage/Current) 2、Built-in beat interval detecion circuit with SRAM can optimize power consumption for sleep heart rate monitoring 3、Integrates an oscillator to offer high-precision clock with external crystal 4、Flexible timing control for dynamic power down for power saving 5、Ultra-low power consumption

方案规格

Features  I2C compliant slave mode operation  7-bit addressing  START/STOP/REPEATED START condition  Manual transfer mode  Multi-transfer per transaction  Active drive/wired-and I/O configuration

技术文档

类型标题档案
软件Schematics
