_SOI JX-A05車規Full HD影像傳感器
【 Key Specifications】
【 Features 】
● | Automatic functions: |
- ABLC – Automatic Black Level Calibration 自動黑電平校準 | |
● | Programmable controls: |
- Gain, exposure, frame rate and size 增益、曝光、幀率和尺寸 | |
- Image mirror and flip 圖像鏡像和翻轉 | |
- Window panning and cropping | |
- Column and row sub-sampling or binning | |
- I2C slave ID | |
● | Output formats: |
- DVP parallel interface | |
- MIPI CSI2 (four lane) | |
● | Data formats: |
- 12/10-bit RAW RGB | |
● | Multiple exposure HDR mode support (staggered output) |
● | Others |
- Frame sync 幀同步 | |
- Register group write capability | |
- Black sunspot cancellation | |
- one-time programmable (OTP) memory | |
- on chip temperature sensor |
_Weltrend WT8932 圖像處理器
【 WT8932 / WT8932NF Block Diagram 】
【 Features 】
● | Embedded 32-bit RISC CPU core |
- DSP instruction set | |
- Up to 180 MHz operation frequency | |
● | Memory |
- Embedded serial flash 2MB | |
- Internal 8KB I-cache | |
- Internal 48KB DLM | |
● | Video inputs 視頻輸入 |
- MIPI CSI-2 (support virtual channel up to 3) 4 lanes, data rate up to 1Gbps/lane | |
- HiSPi SLVS/HiVcm 4 lanes(support formats Packetized-SP and Streaming-SP mode), data rate up to 700Mbps/lane | |
- Max. resolution: 640x480@360fps, 2M@60fps, 2M@30fps(w/ IPU HDR, 2:1 Exp), 3M@30fps, 4M@30fps, 5M@25fps, 8M@15fps(w/ sensor HDR) | |
- Data formats : 8/10/12/14/16-bit Bayer RAW, YUV 4:2:2 8-bit | |
- RGB-IR | |
● | Video outputs 視頻輸出 |
- MIPI CSI-2 4 lanes | |
- Max. resolution: 8M@15fps | |
- Bayer output follow input format, YUV 4:2:2 8-bit | |
● | Image Processing Unit (IPU) |
- Automatic Exposure Control(AEC)_自動曝光控制 | |
- Automatic Gain Control(AGC) 自動增益控制 | |
- Auto White Balance(AWB)_自動白平衡控制 | |
- Black Level Compensation_黑電平補償 | |
- Lens Shading Correction_鏡頭陰影校正 | |
- Spatial Domain Denoise | |
- HDR Stitch_支援2 EXP HDR | |
- WDR Local Tone Mapping | |
- Edge Enhancement | |
- Bayer Patten Interpolation (Color Interpolation) | |
- Color Correction Matrix_顏色校正矩陣 | |
- Gamma | |
- YUV Processing (for brightness, contrast, saturation, and hue processing) | |
● | Communication interfaces 通訊接口 |
- ISP and ICE interface | |
- 2 master/slave mode I2C interfaces up to 400 kHz | |
- 1 full-duplex UART up to 1.5 MHz | |
- 1 master/slave SPI up to 12 MHz | |
● | Timer with 16-bit prescaler |
● | GPIOs with configurable input/output direction and pull-up/pull-down resistor |
● | Window Watchdog Timer (WWDT) |
● | CPU clock source |
- External crystal oscillator 24 MHz (built-in PLL) | |
● | Power consumption |
- Operating: < 0.40W (2M@30fps) | |
- Standby current: <1mA | |
- Power supply 3.0V ~ 3.6V | |
- Core power supply 1.08V ~ 1.32V | |
- Host I/O power supply 3.0V ~ 3.6V | |
- Sensor I/O power supply 1.6V ~ 3.6V | |
● | Operating temperature range: -40℃ ~ +85℃ |
● | Package type: QFN-88L (10x10) |

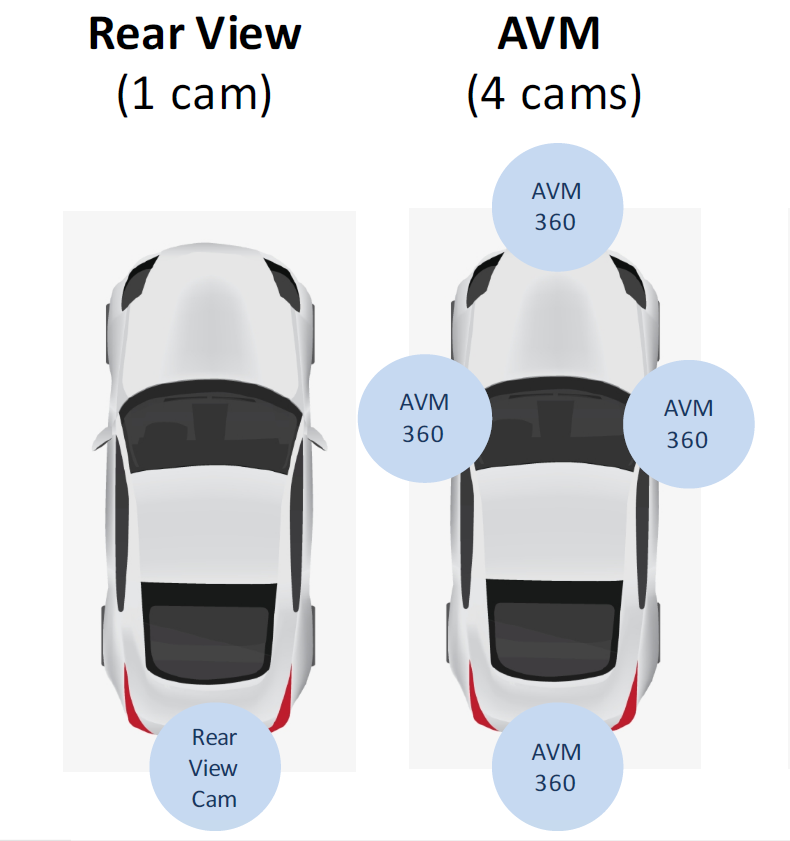

►場景應用圖

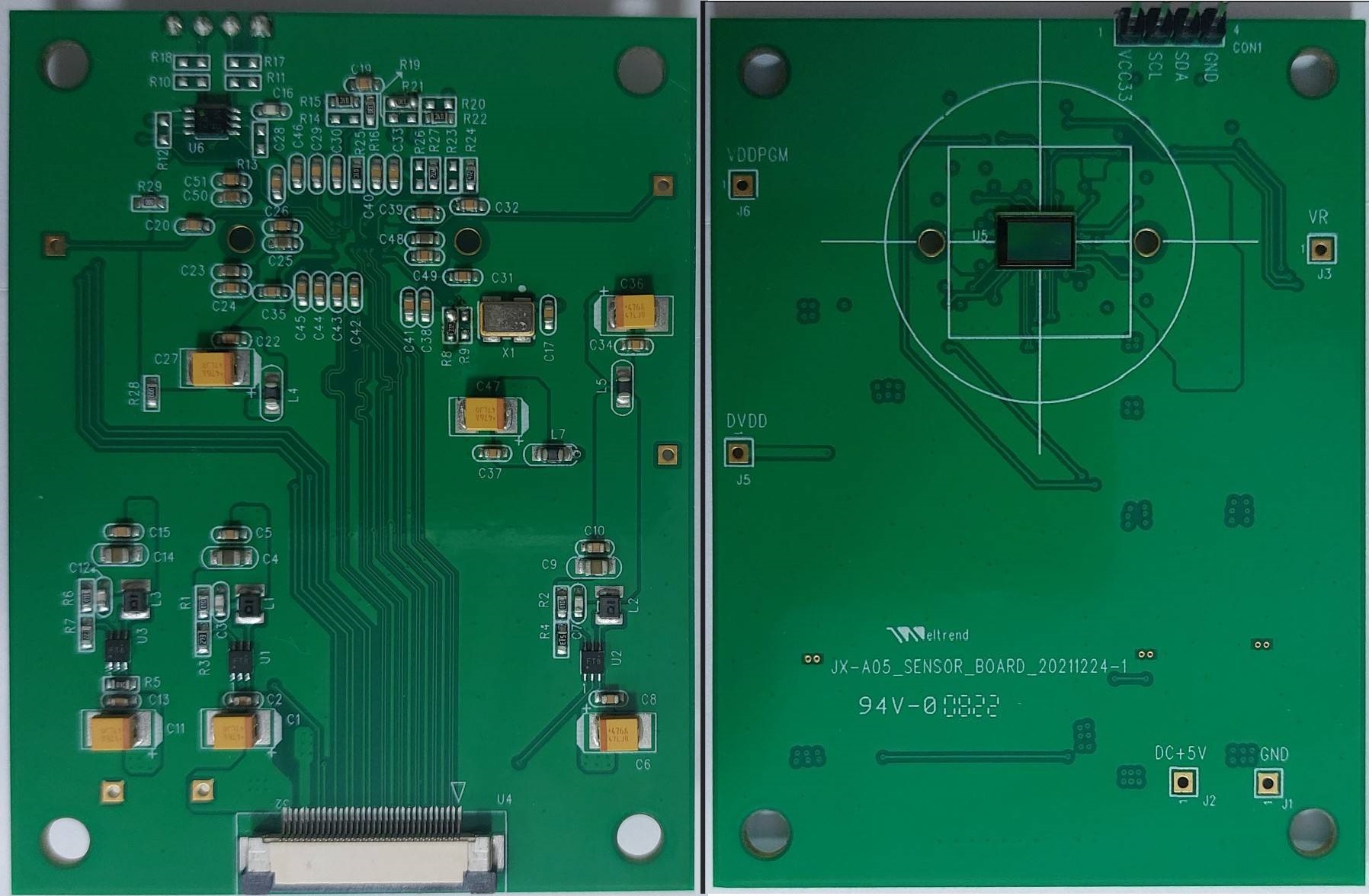

►產品實體圖

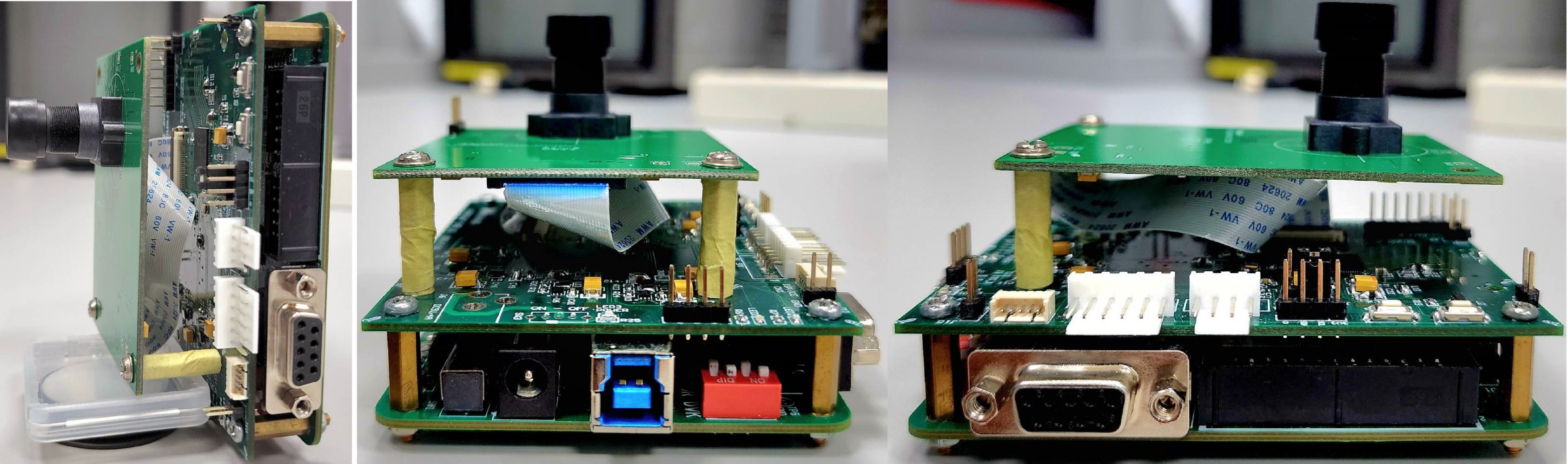

►展示板照片
►方案方塊圖
►核心技術優勢
JX-A05是一適用於車用市場應用且性價比很高的1080P解決方案; 現今車輛設計已朝向更高智能化及大量運用現今電子科技技術的導向; 人類及機器視覺的搭配完成更高行車安全的環境也是車用市場開發的方向; 晶相光電除了提供行車記錄儀,環景監視,現在也提供更多技術應用於DMS或是視覺數位化的車用領域應用。 偉詮電子的圖像處理器WT8932可以在相機模塊中提供最佳的圖像質量性能。 優勢: _ 用於相機模塊集成的組件更少; _ 低功耗、低成本; _ 快速啟動時間和高速幀率; _ 豐富的IPU功能和高質量的圖像(低噪聲和真彩色); _ 嵌入式串行閃存,用於簡單的生產校準和相機 ID 信息; _ 支持系統內編程(ISP)進行系統升級;
►方案規格
●SOI JX-A05 是一款高性能2MP(1080P) 1/2.7 英寸 CMOS 圖像傳感器,採用 SOI 的 3.0um 像素技術設計和製造和芯片級封裝(CSP),可適用於車載前裝應用,通過了 AEC-Q100, Grade 2 車規認證,具有許多汽車安全功能。能夠以90幀 /秒(fps)的速度拍攝2MP(1920x1080) 分辨率的視頻,同時也支持三段曝光 HDR 30fps ( 3-stage HDR 交錯輸出模式) 技術。憑藉卓越的暗光靈敏度,即使在惡劣的照明條件下也能生成優質圖像和全高清 1080P 視頻。 ● WT8932 為高性能圖像處理器,它採用 32 位 RISC CPU 和 DSP 指令集,運行頻率高達 180 MHz,並針對具有 MIPI 接口的圖像傳感器進行了優化。此外處理器內嵌硬件圖像處理器單元 (IPU),提供AEC、AGC、AWB、HDR、RGB-IR...等豐富的圖像技術支持功能,硬體採用影像標準介面及提供豐富的API影像優化設計工具。支持高達 8 兆像素的輸入分辨率,為相機應用提供實時和卓越的可視性技術,且硬體設計上需要很少的外部組件,可以輕鬆集成到相機模塊中。
