此人體感應藍牙耳機，主要由QUALCOMM藍牙CSR8670晶片和SEMTECH公司的SX9310感測器晶片，兩部分組成的高端人體感應藍牙耳機。對比其他的藍牙耳機，額外具備“當來電 或 音樂時，耳機可以檢測是否為佩戴狀態，以決定語音 或 音樂是否轉回手機播放”高級功能。
SX9310 是電容比吸收率控制器（SAR）。擁有三個感應器件( CS0, CS1, CS2)，可以使用其三個中的兩個來精確地連接到SAR的智慧引擎,來做無生命的物體和人體區分。第三個感測器輸入可獨立用於標準電容傳感。I2C的通信介面，在檢測到接近物時由NIRQ腳輸出信號。SX9310包含一個片上的自校正控制器,定期進行敏感度調整以保持在寬溫度變化下的峰值性能，濕度和雜訊環境，提供簡化產品開發和提高性能。

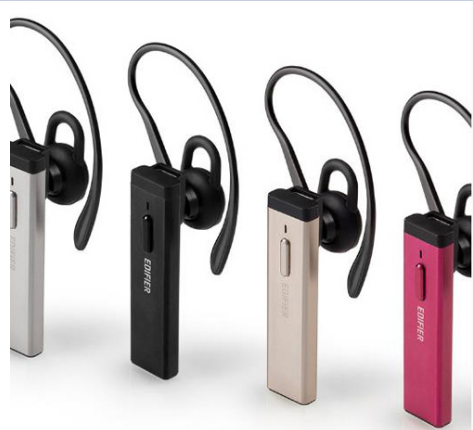

►場景應用圖
►產品實體圖

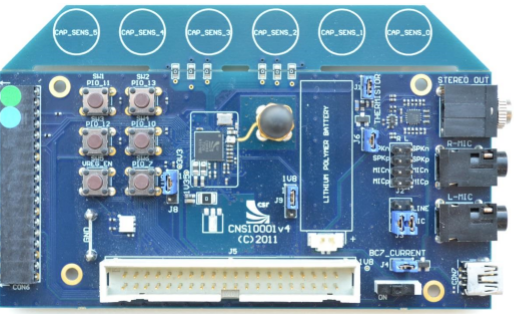

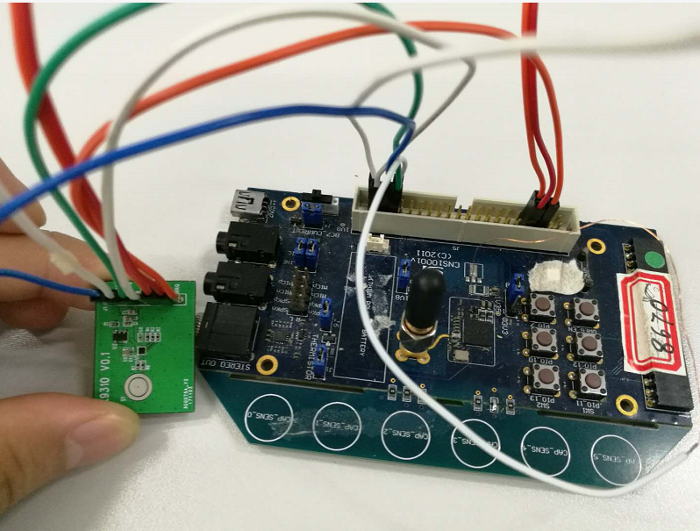

►展示板照片

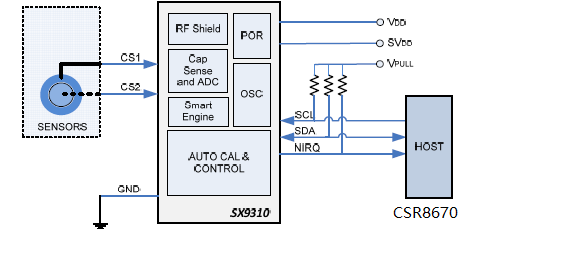

►方案方塊圖
►核心技術優勢
CSR8670 Features: ■ Bluetooth® v4.0 specification fully qualified software ■ Radio includes integrated balun ■ 80MHz RISC MCU and 80MIPS Kalimba DSP ■ 16Mb internal flash memory (64-bit wide, 45ns); optional support for 64Mb of external SPI flash ■ Stereo codec with 2 channels of ADC and up to 6 microphone inputs (includes bias generators and digital microphone support) ■ Support for CSR's latest CVC technology for narrow-band and wideband voice connections including wind noise reduction ■ Audio interfaces: I²S, PCM and SPDIF ■ Serial interfaces: UART, USB 2.0 full-speed, I²C ■ Integrated dual switch-mode regulators, linear regulators and battery charger ■ 3 hardware LED controllers (for RGB) and ability to drive LCD segment display directly ■ Support for up to 6 capacitive touch sensor inputs ■ 6.5 x 6.5 x 1mm, 0.5mm pitch 112‑ball VFBGA ■ Green (RoHS compliant and no antimony or halogenated flame retardants)
►方案規格
SX9310 PRODUCT FEATURES ■ 2.7 – 5.5V Core Supply (VDD) * 1.65 – 2V Host Interface Supply (SVDD) * 1.65 – 5.5V Compliant Host Interface (VPULL) ■ Up to 3 SAR Capacitive Sensor Inputs * Patented On-Chip Smart Engine For SAR (Body versusInanimate Object Detection) * Capacitance Resolution down to 0.08 fF * Capacitance Offset Compensation up to 100 pF * Integrated RF Shield * Advanced Temperature Compensation ■ Automatic Calibration ■ Built-in Start-up Proximity Detection ■ Ultra Low Power Consumption * Active Mode: 70 uA * Doze Mode: 8 uA * Sleep Mode: 2.5 uA ■ 400kHz I2C Serial Interface ■ Programmable Interrupt or Real-Time Status Pin ■ User NVM for Custom Default Registers Values(Standalone Mode) ■ Two Reset Sources: POR, Soft Reset ■ -40°C to +85°C Operation ■ Compact Size: 1.36 x 1.33 mm WLCSP package ■ Pb & Halogen Free, RoHS/WEEE compliant
