QCA4531是一款低成本的Turnkey方案，可讓在開發者在Linux / OpenWRT環境中客製化功能。受益於基於2x2 11n的擴展範圍，QCA4531可設計為作為智慧家庭中的IoT Gateway，並且支援Bluetooth MESH技術連接IoT裝置，另外提供CLOUD雲端服務，讓使用者可以透過手機APPf遠端監控IoT裝置
QCA4531可提供HomeKit功能，使用者可以用iPhone/iPad操控QCA4531，進而控制IoT裝置

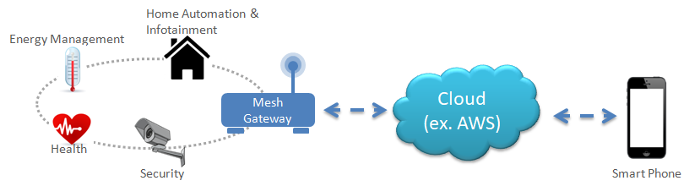

►場景應用圖

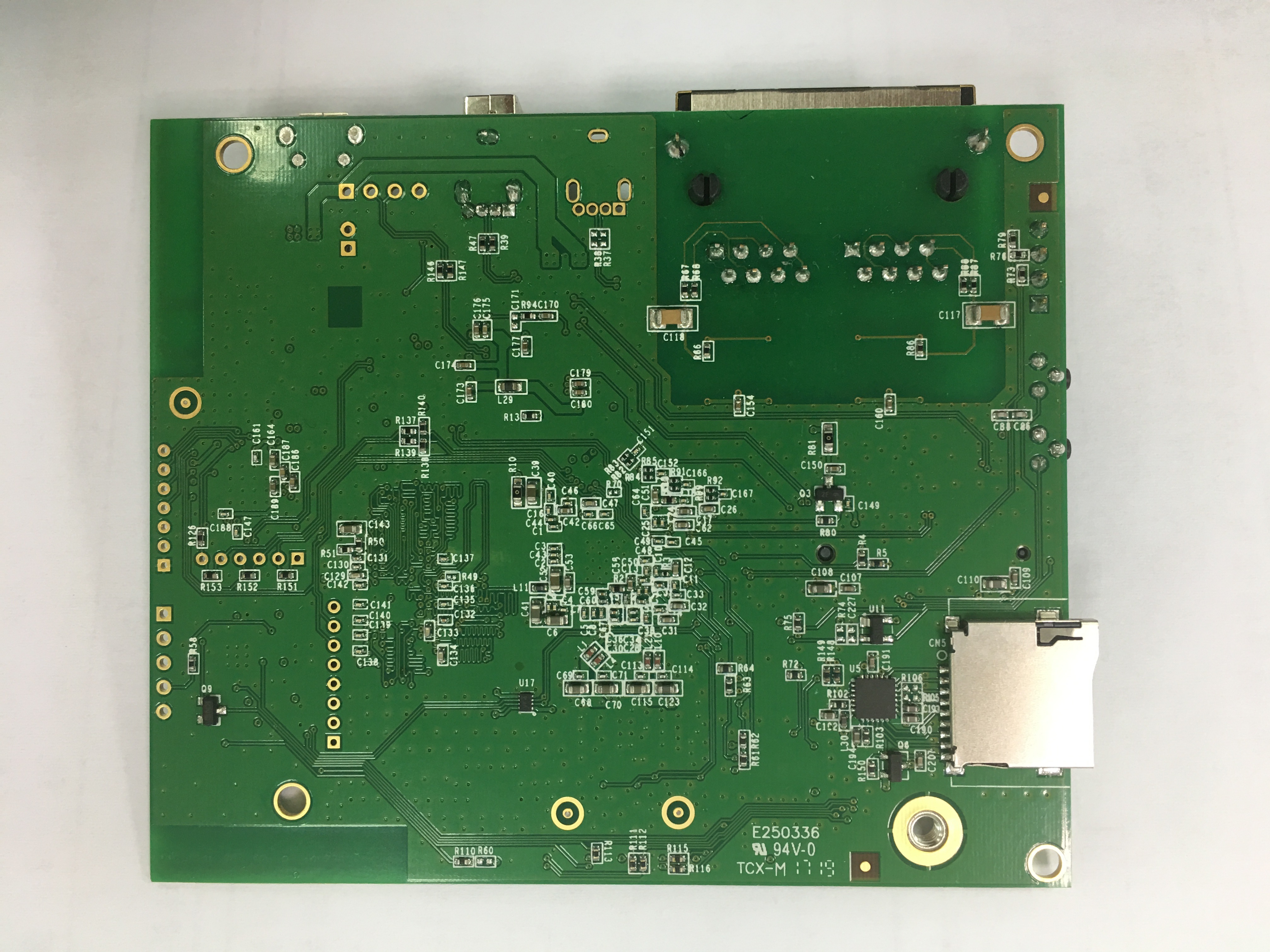

►展示板照片

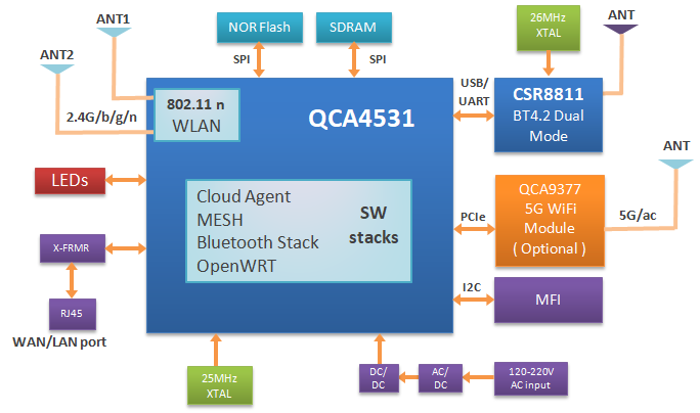

►方案方塊圖
►核心技術優勢
1. Client to access points / gateways 2. Bridges between multiple protocols 3. Cloud Connectivity 4. Data Aggregation 5. Bridges multiple control and automation networks: 6. Bluetooth®, ZigBee, Thread, etc. are in development
►方案規格
1. Support WiFi 802.11b/g/n (2.4GHz) & 802.11ac (5GHz) 2. Support 2.4GHz (2T2R) & 5GHz (1T1R) Concurrent Mode (AC750) 3. Support embedded PIFA or External Antenna 4. BLE (Blue) / WiFi (Green/Red) / WAN or LTE (Orange) Status LED 5. Wireless Range for Control: 15 Meter (Indoor) / 30 Meter (Open Side) 6. Support WAN (100Mbps) or optional LTE / 4G module for internet connection 7. Support BLE-Mesh Interface Embedded for Smart Lighting Control 8. Power Requirement: Micro USB 5V from AC (100-240V) to DC Power Adapter 9. Support Apple HomeKit / Google Nest / CNS15652 Related Standards 10. Support 1 USB Port for LTE / 802.11ac Dongle 11. Support 1 Mini PCIe Socket for LTE / 802.11ac Module 12. Support URL-CMDs for developing Cloud, iOS & Android APP
