世平集團代理產品線 第 13 代 Intel® Core™ 筆記型電腦處理器產品簡介

日期 : 2023-01-19
標籤 :
WPI世平英特爾Intel Intel 13代Mobile 處理器 Intel CPU Intel Core 13 gen RPL Raptor lake-HXRaptor lake-HRaptor lake-PRaptor lake-U Mobile

新聞內容

作者 : Intel
出處 : https://www.intel.com.tw/content/www/tw/zh/products/docs/processors/core/13th-gen-processors.html

世平集團代理產品線  13 Intel® Core 筆記型電腦處理器產品簡介




更多效能觸手可及

我們全新的第 13 代 Intel® Core™ 處理器不僅僅是一個晶片──它是一個多元宇宙,每個人都可以擁有一切並成為一切,利用第13 代 Intel® Core™ 處理器,將創造力提升至全新境界。利用更高的效能完成要求嚴苛的工作負載,輕鬆可得。成就更多,創作更豐富。

攀升排行榜、創造世界和處理數字──一次完成。第 13 代 Intel® Core™ 處理器的次世代優異效能滿足您的需求。

運用我們有史以來最快速的晶片成就更多

  • 提升效能混合架構

第 13 代 Intel® Core™ 處理器透過高達八個 Performance-core(P-core)和高達 16 個 Efficient-core(E-core),搭配 Intel® Thread Director1以智慧方式路由的工作負載,引領效能混合式架構發展。

  • 專為現代遊戲打造

專為尋求最大效能、暢玩最新遊戲的遊戲玩家打造,同時具備處理其他工作負載的能力。搭載全新第 13 代 Intel® Core™ 處理器的電腦,實現所有可能。

  • 卓越的創作體驗

第 13 代 Intel® Core™ 處理器家族提供更快的 P-core 和更多 E-core,支援 DDR4/DDR5 與 PCIe 4.0/5.0。它提供了可最大化多工作業及選擇配置的平台。

  • 為您的日常工作自訂效能

第 13 代 Intel® Core™ 處理器提供高度靈活的架構和業界領先的工具,以實現極致的自訂效能。

筆記型



  • 隨處工作、直播與暢玩遊戲

透過更高的多工處理效能與更多的 e-core,工作玩樂皆適宜。透過第 13 代 Intel® Core™ 處理器,一邊享受行動遊戲,一邊直播影片、多工處理、播放音樂及編碼影片。​




  • 讓您的創造力更上層樓

利用第 13 代 Intel® Core™ 處理器,將創造力提升至全新境界。利用更高的效能完成要求嚴苛的工作負載,輕鬆可得。成就更多,創作更豐富。​




  • Intel® Evo™ 筆記型電腦一應俱全,讓您無所不能

Intel Evo 筆記型電腦締造不妥協的高階行動體驗,提供您想要的高階標準,以及改善筆記型電腦體驗的創新功能。​

第 13 代 Intel® Core™ Mobile處理器功能一覽

FEATURE

BENEFIT

Performance Hybrid Architecture

Integrates two core microarchitectures into a single die, prioritizing and distributing workloads to optimize performance.

Intel® Thread Director

Optimizes workloads by helping the OS scheduler intelligently distribute workloads to the optimal cores.

Support for up to DDR5 5600 MT/s

This industry first memory technology that supports fast frequencies and high bandwidth and throughput, leading to enhanced workflow and productivity.

Support for up to DDR4 3200 MT/s

Supports faster frequencies and higher bandwidth and throughput, leading to enhanced workflow and productivity.

Up to 16 CPU PCIe 5.0 lanes

Latest generation PCIe lanes deliver greater performance efficiency, smooth gameplay and increased workflow productivity.

Up to 4 CPU PCIe 4.0 lanes

Offers up to 16 GT/s for fast access to storage and peripheral devices with up to 4 PCI Express 4.0 lanes.

Intel® Dynamic Power Share

Dynamically shifts power between Intel CPU and 3rd party discrete GPU to optimize platform thermals and unleash the best performance and end user experience.

Intel® Deep Learning Boost (VNNI)

Accelerates AI inference—vastly improving performance for deep learning workloads.

Intel® Gaussian & Neural Accelerator 3.0 (GNA 3.0)

Runs AI workloads on accelerator to more efficiently blur video background and suppress background noise.

Intel® Wi-Fi 6E (Gig+)

Intel® Wi-Fi 6E is nearly 3 times faster and with 40% higher peak data rates compared to the standard 902.22ac 2x2 and dual spatial stream 802.11ac, respectively, for high-speed file sharing, smooth 4K streaming, and ultra-responsive surfing and gaming.

6 GHz Spectrum for Wi-Fi

The first new band since 2003, it more than doubles the contiguous clean spectrum from 480 MHz to 1200 MHz and increases Gigabit Wi-Fi options from 2 160 MHz channels to 7, with no legacy Wi-Fi interference.

Intel® Connectivity Performance Suite

Intelligent optimization of Wi-Fi performance for up to 66% lower latency for voice/ video calls, 4X better video streaming resolution, and 30% faster network speeds.

Intel® Bluetooth® 5.2 Technology

Enhances PC-to-device connectivity for one-click device pairing and easier file sharing, up to 20% less audio power consumption compared to standard Bluetooth® on select models, and 2X faster speeds than Bluetooth® 4.2.

Up to 4 Thunderbolt 4 Ports

Thunderbolt 4 port is the best-in-class USB-C. With 40Gb/s bandwidth and stringent testing for interoperability, it offers the simplest, most reliable and fastest cable connection for power, data, and display over a single cable.

Overclockable

All SKUs of HX will support overclockability (full/partial), allowing users to access higher CPU speeds.

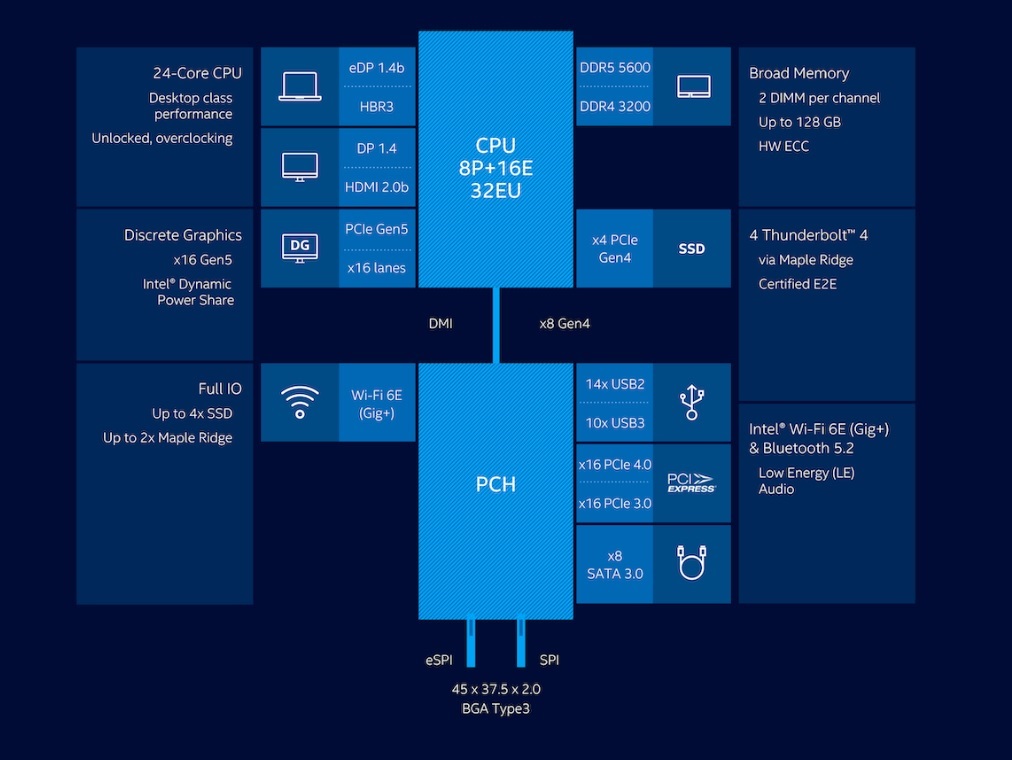

第 13 代 Intel® Core™ Mobile處理器Block Diagram-HX系列



第 13 代 Intel® Core™ Mobile處理器Block Diagram-H/P/U系列



第 13 代 Intel® Core™ Mobile處理器列表-HX系列

  i9-13980HX i9-13950HX i9-13900HX i7-13850HX i7-13700HX i7-13650HX i5-13600HX i5-13500HX i5-13450HX
Processor Cores 24 24 24 20 16 14 14 14 10
Number of P-cores 8 8 8 8 8 6 6 6 6
Number of E-cores 16 16 16 12 8 8 8 8 4
Total Processor Threads 32 32 32 28 24 20 20 20 16
Intel® Smart Cache (L3) 36MB 36MB 36MB 30MB 30MB 24MB 24MB 24MB 20MB
Max Turbo Frequency (GHz)9 P-core 5.6 5.5 5.4 5.1 5.0 4.9 4.7 4.6 4.5
E-core 4.0 4.0 3.9 3.8 3.6 3.6 3.6 3.5 3.4
Processor Base Frequency (GHz) P-core 2.2 2.2 2.2 2.1 2.1 2.6 2.6 2.5 2.4
E-core 1.6 1.6 1.6 1.5 1.5 1.9 1.9 1.8 1.8
Max Graphics Frequency (GHz) 1.65 1.65 1.65 1.60 1.55 1.55 1.50 1.50 1.45
Processor Graphics 32EU 32EU 32EU 32EU 32EU 16EU 32EU 16EU 16EU
DDR5 Frequency 5600 5600 5600 5600 4800 4800 4800 4800 4800
Processor Base Power (W) 55
Maximum Turbo Power (W) 157
Intel vPro® Eligible - Enterprise - Enterprise - - Enterprise - -



第 13 代 Intel® Core™ Mobile處理器列表-H系列

  i9-13900HK10 i9-13905H11 i9-13900H i7-13800H i7-13705H11 i7-13700H i7-13620H i5-13600H i5-13505H11 i5-13500H i5-13420H
Processor Cores 14 14 14 14 14 14 10 12 12 12 8
Number of P-cores 6 6 6 6 6 6 6 4 4 4 4
Number of E-cores 8 8 8 8 8 8 4 8 8 8 4
Total Processor Threads 20 20 20 20 20 20 16 16 16 16 12
Intel® Smart Cache (L3) 24MB 24MB 24MB 24MB 24MB 24MB 24MB 18MB 18MB 18MB 12MB
Max Turbo Frequency (GHz)12 P-core 5.4 5.4 5.4 5.2 5.0 5.0 4.9 4.8 4.7 4.7 4.6
E-core 4.1 4.1 4.1 4.0 3.7 3.7 3.6 3.6 3.5 3.5 3.4
Processor Base Frequency (GHz) P-core 2.6 2.6 2.6 2.5 2.4 2.4 2.4 2.8 2.6 2.6 2.1
E-core 1.9 1.9 1.9 1.8 1.8 1.8 1.8 2.1 1.9 1.9 1.5
Max Graphics Frequency (GHz) 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.45 1.45 1.40
Processor Graphics 96EU 96EU 96EU 96EU 96EU 96EU 64EU 80EU 80EU 80EU 48EU
LPDDR5 Frequency13 6400 6400 6400 6400 6400 6400 5200 6400 6400 6400 5200
Processor Base Power (W) 45
Maximum Turbo Power (W) 115 95
Intel vPro® Eligible Essentials - Enterprise Enterprise - Essentials - Enterprise - Essentials


第 13 代 Intel® Core™ Mobile處理器列表-P系列

  i7-1370P i7-1360P i5-1350P i5-1340P
Processor Cores 14 12 12 12
Number of P-cores 6 4 4 4
Number of E-cores 8 8 8 8
Total Processor Threads 20 16 16 16
Intel® Smart Cache (L3) 24MB 18MB 12MB 12MB
Max Turbo Frequency (GHz)12 P-core 5.2 5.0 4.7 4.6
E-core 3.9 3.7 3.5 3.4
Processor Base Frequency (GHz) P-core 1.9 2.2 1.9 1.9
E-core 1.4 1.6 1.4 1.4
Max Graphics Frequency (GHz) 1.50 1.50 1.50 1.45
Processor Graphics 96EU 96EU 80EU 80EU
Processor Base Power (W) 28
Maximum Turbo Power (W) 64
Intel vPro® Eligible Enterprise Essentials Enterprise Essentials


第 13 代 Intel® Core™ Mobile處理器列表-U系列

  i7-1365U i7-1355U i5-1345U i5-1335U i5-1334U i3-1315U i3-1305U Intel® Processor U300
Processor Cores 10 10 10 10 10 6 5 5
Number of P-cores 2 2 2 2 2 2 1 1
Number of E-cores 8 8 8 8 8 4 4 4
Total Processor Threads 12 12 12 12 12 8 6 6
Intel® Smart Cache (L3) 12MB 12MB 12MB 12MB 12MB 10MB 10MB 8MB
Max Turbo Frequency (GHz) P-core 5.2 5.0 4.7 4.6 4.6 4.5 4.5 4.4
E-core 3.9 3.7 3.5 3.4 3.4 3.3 3.3 3.3
Processor Base Frequency (GHz) P-core 1.8 1.7 1.6 1.3 1.3 1.2 1.6 1.2
E-core 1.3 1.2 1.2 0.9 0.9 0.9 1.2 0.9
Max Graphics Frequency (GHz) 1.30 1.30 1.25 1.25 1.25 1.25 1.25 1.10
Processor Graphics 96EU 96EU 80EU 80EU 80EU 64EU 64EU 48EU
LPDDR5 Frequency13 6400 6400 6400 6400 5200 5200 5200 5200
Processor Base Power (W) 15
Maximum Turbo Power (W) 55
Intel vPro® Eligible Enterprise Essentials Enterprise Essentials Essentials - - -
