NXP S32K312開發板試用-模擬I2C驅動BMP280氣壓感測器

關鍵字 :bmp280開發板感測器s32k312nxpip
  1. 模擬I2C驅動BMP280氣壓感測器
  2. 模擬SPI

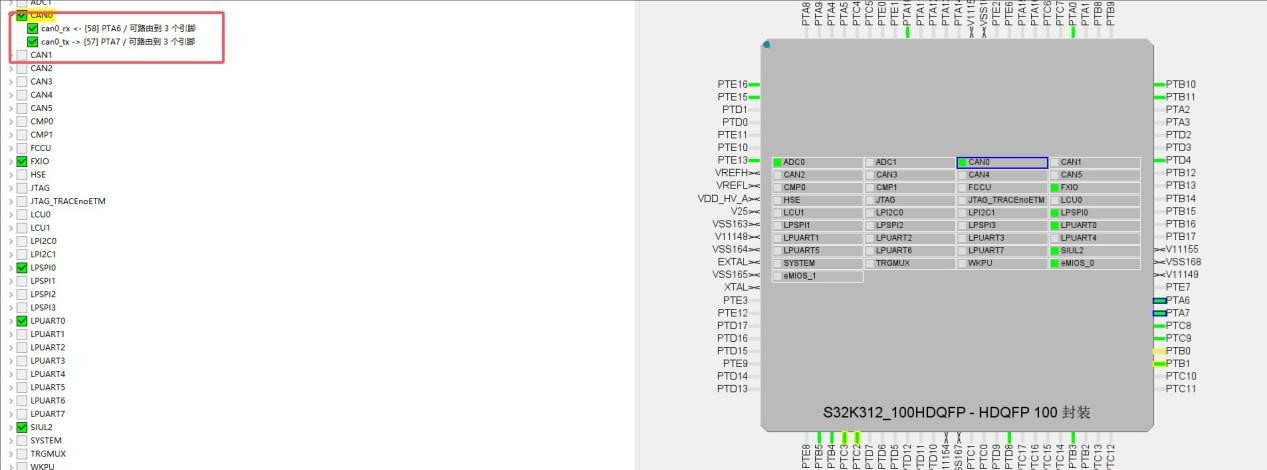

  3. CAN通訊


模擬I2C驅動BMP280氣壓感測器



模擬I2C沒什麼好說的，只需要三個GPIO功能即可：設定SDA引腳的輸入以及輸出方向，設定SCL和SDA引腳的輸出高低電平，讀取SDA引腳的輸入值，直接將要用到的SCL和SDA引腳初始化為GPIO即可：

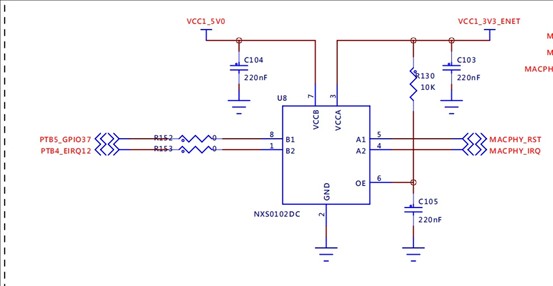

使用了開發板上的PTB5和PTB4，這兩個引腳經過了一個電平轉換晶片，高電平為3.3V。






直接上程式碼：



#define FAKE_I2C_SCL_PTB5_HIGH Siul2_Dio_Ip_WritePin(FAKE_I2C_SCL_PORT , FAKE_I2C_SCL_PIN , 1);

#define FAKE_I2C_SCL_PTB5_LOW Siul2_Dio_Ip_WritePin(FAKE_I2C_SCL_PORT , FAKE_I2C_SCL_PIN , 0);

#define FAKE_I2C_SDA_PTB4_HIGH Siul2_Dio_Ip_WritePin(FAKE_I2C_SDA_PORT , FAKE_I2C_SDA_PIN , 1);

#define FAKE_I2C_SDA_PTB4_LOW Siul2_Dio_Ip_WritePin(FAKE_I2C_SDA_PORT , FAKE_I2C_SDA_PIN , 0);

#define FAKE_I2C_SDA_PTB4_IN Siul2_Port_Ip_SetPinDirection(PORTB_L_HALF , 4 , SIUL2_PORT_IN);

#define FAKE_I2C_SDA_PTB4_OUT Siul2_Port_Ip_SetPinDirection(PORTB_L_HALF , 4 , SIUL2_PORT_OUT);

#define I2C_SDA_PTB4_READ Siul2_Dio_Ip_ReadPin(FAKE_I2C_SDA_PORT , FAKE_I2C_SDA_PIN)

void Fake_I2C_Idle_PTB5_PTB4()
{
    FAKE_I2C_SDA_PTB4_OUT;
    FAKE_I2C_SDA_PTB4_HIGH;
    FAKE_I2C_SCL_PTB5_HIGH;
    Pit0_Delay_us(4);
}

void Fake_I2C_Start_PTB5_PTB4(void)
{
    FAKE_I2C_SDA_PTB4_OUT;
    FAKE_I2C_SDA_PTB4_HIGH;
    FAKE_I2C_SCL_PTB5_HIGH;
    Pit0_Delay_us(4);
    FAKE_I2C_SDA_PTB4_LOW;
    Pit0_Delay_us(4);
    FAKE_I2C_SCL_PTB5_LOW;
    Pit0_Delay_us(4);
}

void Fake_I2C_Stop_PTB5_PTB4(void)
{
    FAKE_I2C_SDA_PTB4_OUT;
    FAKE_I2C_SDA_PTB4_LOW;
    FAKE_I2C_SCL_PTB5_HIGH;
    Pit0_Delay_us(4);
    FAKE_I2C_SDA_PTB4_HIGH;
}

uint8_t Fake_I2C_Wait_Ack_PTB5_PTB4(void)
{
    uint8_t rvalue;
    FAKE_I2C_SDA_PTB4_OUT;
    FAKE_I2C_SDA_PTB4_HIGH;
    Pit0_Delay_us(4);
    FAKE_I2C_SCL_PTB5_HIGH;
    Pit0_Delay_us(4);
    FAKE_I2C_SDA_PTB4_IN;
    if(I2C_SDA_PTB4_READ)
    {
        rvalue = 1;
    }
    else
    {
        rvalue = 0;
    }
    FAKE_I2C_SCL_PTB5_LOW;
    Pit0_Delay_us(4);
    return rvalue;
}

void Fake_I2C_Ack_PTB5_PTB4(void)
{
    FAKE_I2C_SDA_PTB4_OUT;
    FAKE_I2C_SDA_PTB4_LOW;
    Pit0_Delay_us(4);
    FAKE_I2C_SCL_PTB5_HIGH;
    Pit0_Delay_us(4);
    FAKE_I2C_SCL_PTB5_LOW;
    Pit0_Delay_us(4);
    FAKE_I2C_SDA_PTB4_HIGH;
}

void Fake_I2C_NAck_PTB5_PTB4(void)
{
    FAKE_I2C_SDA_PTB4_OUT;
    FAKE_I2C_SDA_PTB4_HIGH;
    Pit0_Delay_us(4);
    FAKE_I2C_SCL_PTB5_HIGH;
    Pit0_Delay_us(4);
    FAKE_I2C_SCL_PTB5_LOW;
    Pit0_Delay_us(4);
}

void Fake_I2C_Send_Byte_PTB5_PTB4(uint8_t txd)
{
    uint8_t i;
    FAKE_I2C_SDA_PTB4_OUT;
    FAKE_I2C_SCL_PTB5_LOW;
    for(i = 0 ; i < 8 ; i++)
    {
        if((txd & 0x80) >> 7)
        {
            FAKE_I2C_SDA_PTB4_HIGH;
        }
        else
        {
            FAKE_I2C_SDA_PTB4_LOW;
        }
        txd <<= 1;
        Pit0_Delay_us(20);
        FAKE_I2C_SCL_PTB5_HIGH;
        Pit0_Delay_us(20);
        FAKE_I2C_SCL_PTB5_LOW;
        Pit0_Delay_us(20);
    }
    Pit0_Delay_us(20);
}

uint16_t Fake_I2C_Read_Byte_PTB5_PTB4(uint8_t ack)
{
    uint8_t i;
    uint16_t dat = 0;
    FAKE_I2C_SDA_PTB4_IN;
    for(i = 0 ; i < 8 ; i++)
    {
        FAKE_I2C_SCL_PTB5_LOW;
        Pit0_Delay_us(20);
        FAKE_I2C_SCL_PTB5_HIGH;
        dat <<= 1;
        if(I2C_SDA_PTB4_READ)
            dat++;
        Pit0_Delay_us(20);
    }

    if (!ack)
    {
        Fake_I2C_NAck_PTB5_PTB4();
    }
    else
    {
        Fake_I2C_Ack_PTB5_PTB4();
    }
    return dat;
}

uint8_t Fake_I2C_Read_Addr_PTB5_PTB4(uint8_t dev_addr , uint8_t reg)
{
    uint8_t res;
    Fake_I2C_Start_PTB5_PTB4();
    Fake_I2C_Send_Byte_PTB5_PTB4((dev_addr << 1) | 0);
    Fake_I2C_Wait_Ack_PTB5_PTB4();
    Fake_I2C_Send_Byte_PTB5_PTB4(reg);
    Fake_I2C_Wait_Ack_PTB5_PTB4();
    Fake_I2C_Start_PTB5_PTB4();
    Fake_I2C_Send_Byte_PTB5_PTB4((dev_addr << 1) | 1);
    Fake_I2C_Wait_Ack_PTB5_PTB4();
    res = Fake_I2C_Read_Byte_PTB5_PTB4(0);
    Fake_I2C_Stop_PTB5_PTB4();
    return res;
}

void Fake_I2C_Read_Datas_PTB5_PTB4(uint8_t dev_addr , uint8_t reg , uint8_t data_len , uint8_t data[])
{
    while(data_len)
    {
        *data = Fake_I2C_Read_Addr_PTB5_PTB4(dev_addr , reg++);
        data++;
        data_len--;
    }
}

void Fake_I2C_Write_Reg_Data_PTB5_PTB4(uint8_t dev_addr , uint8_t reg , uint8_t data)
{
    Fake_I2C_Start_PTB5_PTB4();
    Fake_I2C_Send_Byte_PTB5_PTB4((dev_addr << 1) | 0);
    Fake_I2C_Wait_Ack_PTB5_PTB4();
    Fake_I2C_Send_Byte_PTB5_PTB4(reg);
    Fake_I2C_Wait_Ack_PTB5_PTB4();
    Fake_I2C_Send_Byte_PTB5_PTB4(data);
    Fake_I2C_Wait_Ack_PTB5_PTB4();
    Fake_I2C_Stop_PTB5_PTB4();
}

void Fake_I2C_Write_Reg_Datas_PTB5_PTB4(uint8_t dev_addr , uint8_t reg , uint8_t data_len , uint8_t data[])
{
    int i;
    Fake_I2C_Start_PTB5_PTB4();
    Fake_I2C_Send_Byte_PTB5_PTB4((dev_addr << 1) | 0);
    Fake_I2C_Wait_Ack_PTB5_PTB4();
    Fake_I2C_Send_Byte_PTB5_PTB4(reg);
    Fake_I2C_Wait_Ack_PTB5_PTB4();
    for(i = 0 ; i < data_len ; i++)
    {
        Fake_I2C_Send_Byte_PTB5_PTB4(data[i]);
        Fake_I2C_Wait_Ack_PTB5_PTB4();
    }
    Fake_I2C_Stop_PTB5_PTB4();
    Pit0_Delay_ms(10);
}

#define ATH20_SLAVE_ADDRESS 0x38

#define BMP280_PRESSURE_OSR (BMP280_OVERSAMP_8X)
#define BMP280_TEMPERATURE_OSR (BMP280_OVERSAMP_16X)
#define BMP280_MODE (BMP280_PRESSURE_OSR << 2 | BMP280_TEMPERATURE_OSR << 5 | BMP280_NORMAL_MODE)

#define BMP280_SLAVE_ADDRESS_0x76 0x76
#define BMP280_SLAVE_ADDRESS_0x77 0x77

/*校準參數*/
#define BMP280_DIG_T1_LSB_REG 0x88
#define BMP280_DIG_T1_MSB_REG 0x89
#define BMP280_DIG_T2_LSB_REG 0x8A
#define BMP280_DIG_T2_MSB_REG 0x8B
#define BMP280_DIG_T3_LSB_REG 0x8C
#define BMP280_DIG_T3_MSB_REG 0x8D
#define BMP280_DIG_P1_LSB_REG 0x8E
#define BMP280_DIG_P1_MSB_REG 0x8F
#define BMP280_DIG_P2_LSB_REG 0x90
#define BMP280_DIG_P2_MSB_REG 0x91
#define BMP280_DIG_P3_LSB_REG 0x92
#define BMP280_DIG_P3_MSB_REG 0x93
#define BMP280_DIG_P4_LSB_REG 0x94
#define BMP280_DIG_P4_MSB_REG 0x95
#define BMP280_DIG_P5_LSB_REG 0x96
#define BMP280_DIG_P5_MSB_REG 0x97
#define BMP280_DIG_P6_LSB_REG 0x98
#define BMP280_DIG_P6_MSB_REG 0x99
#define BMP280_DIG_P7_LSB_REG 0x9A
#define BMP280_DIG_P7_MSB_REG 0x9B
#define BMP280_DIG_P8_LSB_REG 0x9C
#define BMP280_DIG_P8_MSB_REG 0x9D
#define BMP280_DIG_P9_LSB_REG 0x9E
#define BMP280_DIG_P9_MSB_REG 0x9F

#define BMP280_CHIPID_REG 0xD0 /*晶片ID寄存器*/
#define BMP280_RESET_REG 0xE0 /*軟重置寄存器*/
#define BMP280_STATUS_REG 0xF3 /*狀態寄存器*/
#define BMP280_CTRLMEAS_REG 0xF4 /*控制測量寄存器*/
#define BMP280_CONFIG_REG 0xF5 /*配置寄存器*/
#define BMP280_PRESSURE_MSB_REG 0xF7 /*壓力MSB寄存器*/
#define BMP280_PRESSURE_LSB_REG 0xF8 /*壓力LSB寄存器*/
#define BMP280_PRESSURE_XLSB_REG 0xF9 /*壓力XLSB寄存器*/
#define BMP280_TEMPERATURE_MSB_REG 0xFA /*溫度MSB寄存器*/
#define BMP280_TEMPERATURE_LSB_REG 0xFB /*溫度LSB寄存器*/
#define BMP280_TEMPERATURE_XLSB_REG 0xFC /*溫度XLSB寄存器*/

#define BMP280_SLEEP_MODE (0x00)
#define BMP280_FORCED_MODE (0x01)
#define BMP280_NORMAL_MODE (0x03)

#define BMP280_TEMPERATURE_CALIB_DIG_T1_LSB_REG (0x88)
#define BMP280_PRESSURE_TEMPERATURE_CALIB_DATA_LENGTH (24)
#define BMP280_DATA_FRAME_SIZE (6)

#define BMP280_OVERSAMP_SKIPPED (0x00)
#define BMP280_OVERSAMP_1X (0x01)
#define BMP280_OVERSAMP_2X (0x02)
#define BMP280_OVERSAMP_4X (0x03)
#define BMP280_OVERSAMP_8X (0x04)
#define BMP280_OVERSAMP_16X (0x05)

#define CONST_PF 0.1902630958
//(1/5.25588f) 壓力因子
#define FIX_TEMP 25
// 固定溫度。ASL 是壓力和溫度的函數，但由於溫度變化太大（稍微吹一下就會下降5度），會影響ASL的估算。
// 簡而言之：調整溫度變化的影響反而弊大於利。

typedef struct
{
    uint16_t dig_T1;/* 校準T1數據 */
    int16_t dig_T2; /* 校準T2數據 */
    int16_t dig_T3; /* 校準T3數據 */
    uint16_t dig_P1;/* 校準P1數據 */
    int16_t dig_P2; /* 校準P2數據 */
    int16_t dig_P3; /* 校準P3數據 */
    int16_t dig_P4; /* 校準P4數據 */
    int16_t dig_P5; /* 校準P5數據 */
    int16_t dig_P6; /* 校準P6數據 */
    int16_t dig_P7; /* 校準P7數據 */
    int16_t dig_P8; /* 校準P8數據 */
    int16_t dig_P9; /* 校準P9數據 */
    int t_fine; /* 校準t_fine數據 */
} bmp280Calib;

uint8_t msb , lsb , xlsb;
float var1 , var2;
bmp280Calib bmp280Cal;

uint8_t BMP280_Init(void)
{
    uint8_t bmp280_id;
    uint8_t tmp[1];

    printf("BMP280_Init.\n");

    Fake_I2C_Read_Datas_PTB5_PTB4(BMP280_SLAVE_ADDRESS_0x77 , BMP280_CHIPID_REG, 1, &bmp280_id);

    printf("bmp280_id = 0x%x\n" , bmp280_id);

    Fake_I2C_Read_Datas_PTB5_PTB4(BMP280_SLAVE_ADDRESS_0x77, BMP280_DIG_T1_LSB_REG , 24 , (uint8_t *)&bmp280Cal);

    tmp[0] = BMP280_MODE;
    Fake_I2C_Write_Reg_Datas_PTB5_PTB4(BMP280_SLAVE_ADDRESS_0x77 , BMP280_CTRLMEAS_REG , 1 , tmp);

    tmp[0] = 5 << 2;
    Fake_I2C_Write_Reg_Datas_PTB5_PTB4(BMP280_SLAVE_ADDRESS_0x77 , BMP280_CONFIG_REG , 1 , tmp);

    return bmp280_id;
}

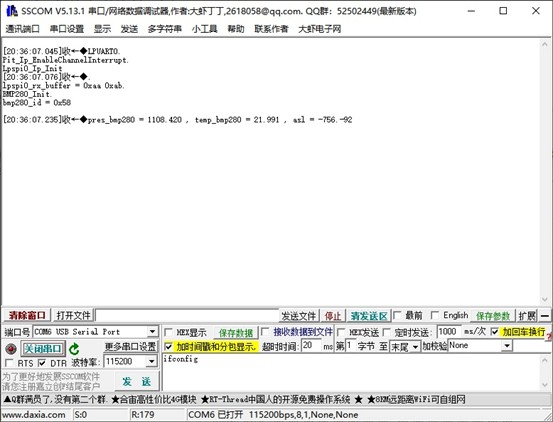

將BMP280連接到開發板，觀察BMP280的讀數：







但是發現了一個問題，使用 printf 函數無法打印浮點數，只能通過整數型方式強制轉型，並且使用 abs() 函數會導致程式卡死：



BMP280_Read_Pressure_Tempature(&bmp280_pres , &bmp280_temp);

asl = BMP280PressureToAltitude(&bmp280_pres);

printf("pres_bmp280 = %d.%-3d , temp_bmp280 = %d.%-3d , asl = %d.%-3d\n" ,

(int)bmp280_pres , ((int)(bmp280_pres * 1000)) % 1000 ,

(int)bmp280_temp , ((int)(bmp280_temp * 1000)) % 1000 ,

(int)asl , ((int)(asl * 1000)) % 1000

);



這個原因跟編譯器和編譯器選項有關，不深究。


1. 模擬SPI

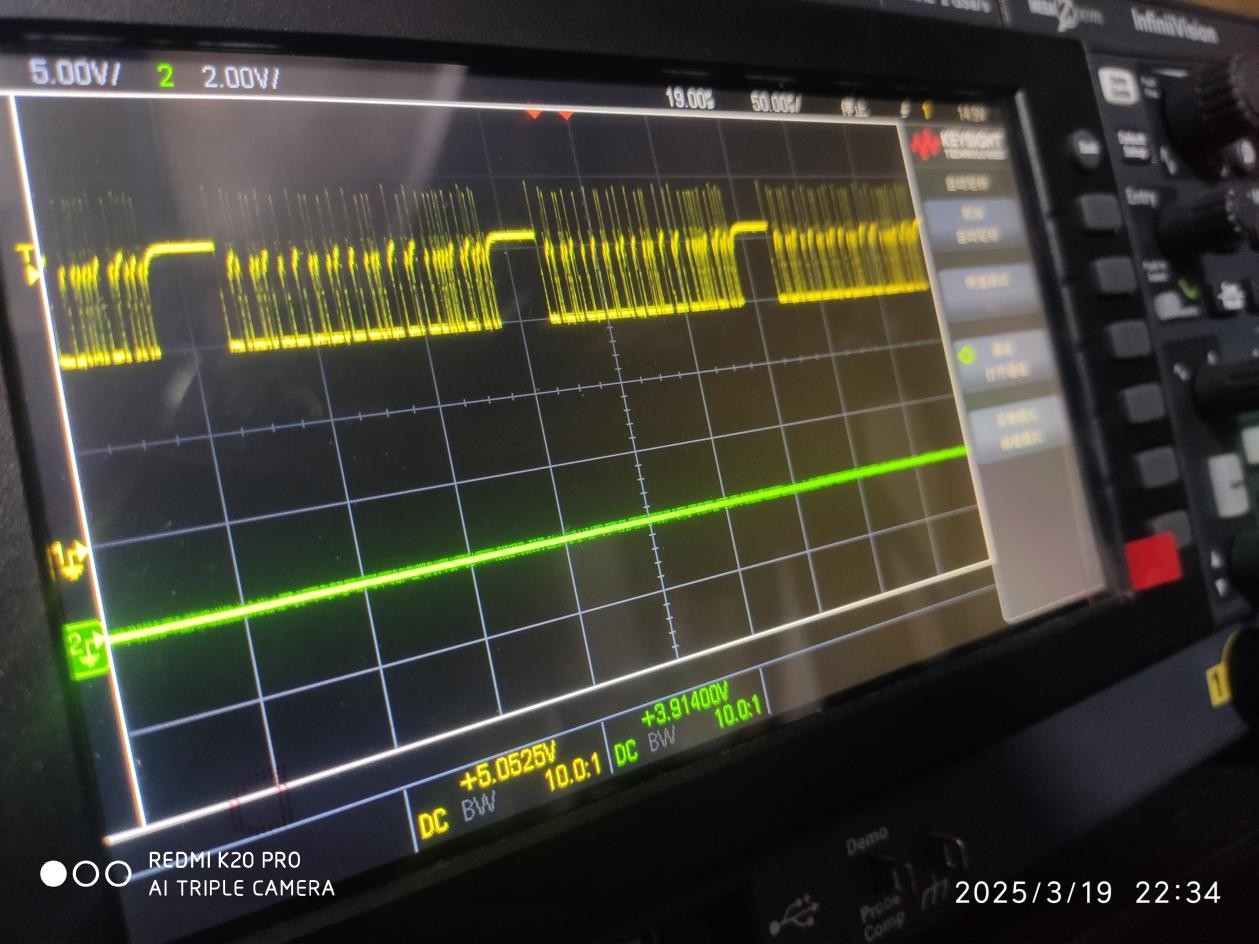

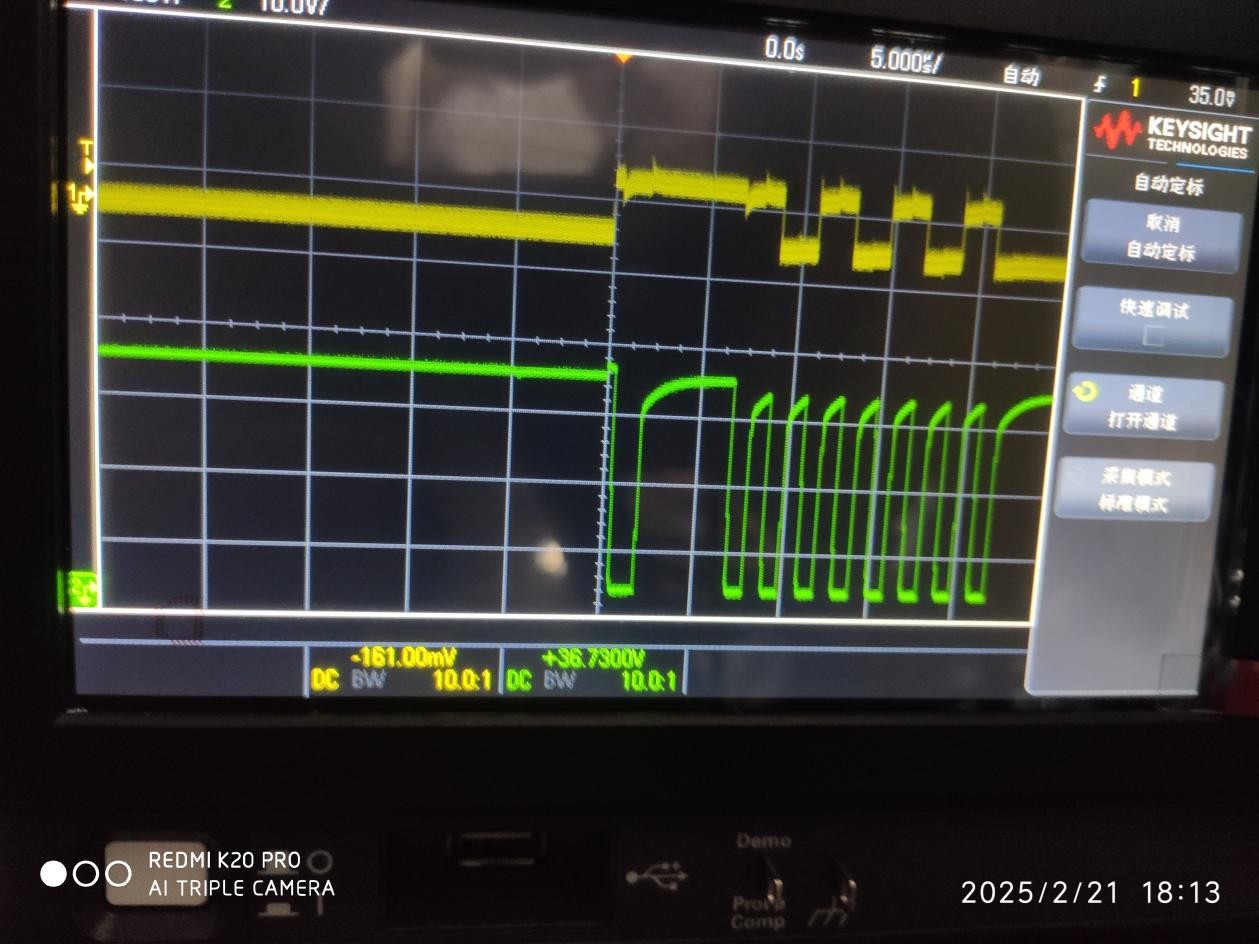

由於開發板的硬體SPI波形調試一直不順利：




在八位資料前有一個原因不明的時鐘上升沿，因此使用模擬SPI：





模擬 SPI 實現函數：



#define LPSPI0_BUFFER_NUM 2

uint8_t lpspi0_tx_buffer[LPSPI0_BUFFER_NUM] = {0xaa , 0xab};

uint8_t lpspi0_rx_buffer[LPSPI0_BUFFER_NUM] = {0};

#define SPITFTLCD24_RESET_HIGH Siul2_Dio_Ip_WritePin(FAKE_RST_PORT , FAKE_RST_PIN , 1);

#define SPITFTLCD24_RESET_LOW Siul2_Dio_Ip_WritePin(FAKE_RST_PORT , FAKE_RST_PIN , 0);

#define SPITFTLCD24_A0_HIGH Siul2_Dio_Ip_WritePin(FAKE_A0_PORT , FAKE_A0_PIN , 1);

#define SPITFTLCD24_A0_LOW Siul2_Dio_Ip_WritePin(FAKE_A0_PORT , FAKE_A0_PIN , 0);

#define SPITFTLCD24_CS_HIGH Siul2_Dio_Ip_WritePin(FAKE_SPI_CS_PORT , FAKE_SPI_CS_PIN , 1);

#define SPITFTLCD24_CS_LOW Siul2_Dio_Ip_WritePin(FAKE_SPI_CS_PORT , FAKE_SPI_CS_PIN , 0);

#define SPITFTLCD24_MOSI_HIGH Siul2_Dio_Ip_WritePin(FAKE_SPI_MOSI_PORT , FAKE_SPI_MOSI_PIN , 1);

#define SPITFTLCD24_MOSI_LOW Siul2_Dio_Ip_WritePin(FAKE_SPI_MOSI_PORT , FAKE_SPI_MOSI_PIN , 0);

#define SPITFTLCD24_CLK_HIGH Siul2_Dio_Ip_WritePin(FAKE_SPI_CLK_PORT , FAKE_SPI_CLK_PIN , 1);

#define SPITFTLCD24_CLK_LOW Siul2_Dio_Ip_WritePin(FAKE_SPI_CLK_PORT , FAKE_SPI_CLK_PIN , 0);

#define SPITFTLCD24_COLUMN_NUMBER 240

#define SPITFTLCD24_LINE_NUMBER 320

#define SPITFTLCD24_COLUMN_OFFSET 0

#define RED 0xf800

#define GREEN 0x07e0

#define BLUE 0x001f

#define CYAN 0x07ff

#define WHITE 0xffff

#define BLACK 0

void SPITFTLCD24_SEND_CMD(unsigned char o_command)
{
    uint8_t i;

    SPITFTLCD24_A0_LOW;
    SPITFTLCD24_CS_LOW;

    SPITFTLCD24_CLK_HIGH;

    for(i = 0; i < 8; i++)
    {
        SPITFTLCD24_CLK_LOW;

        if(o_command & 0x80)
        {
            SPITFTLCD24_MOSI_HIGH;
        }
        else
        {
            SPITFTLCD24_MOSI_LOW;
        }

        o_command <<= 1;

        SPITFTLCD24_CLK_HIGH;
    }

    SPITFTLCD24_CLK_HIGH;
    SPITFTLCD24_CS_HIGH;
}

void SPITFTLCD24_SEND_DATA(unsigned char o_data)
{
    uint8_t i;

    SPITFTLCD24_A0_HIGH;
    SPITFTLCD24_CS_LOW;

    for(i = 0; i < 8; i++)
    {
        SPITFTLCD24_CLK_LOW;

        if(o_data & 0x80)
        {
            SPITFTLCD24_MOSI_HIGH;
        }
        else
        {
            SPITFTLCD24_MOSI_LOW;
        }

        o_data <<= 1;

        SPITFTLCD24_CLK_HIGH;
    }

    SPITFTLCD24_CS_HIGH;
}

void SPITFTLCD24_Clear(void)
{
    uint32_t row, column;

    SPITFTLCD24_SEND_CMD(0x2a); // 設定列地址
    SPITFTLCD24_SEND_DATA(0x00); // 起始列
    SPITFTLCD24_SEND_DATA(0x00);
    SPITFTLCD24_SEND_DATA(0x00); // 結束列
    SPITFTLCD24_SEND_DATA(0xF0);

    SPITFTLCD24_SEND_CMD(0x2b); // 設定行地址
    SPITFTLCD24_SEND_DATA(0x00); // 起始行
    SPITFTLCD24_SEND_DATA(0x00);
    SPITFTLCD24_SEND_DATA(0x01); // 結束行
    SPITFTLCD24_SEND_DATA(0x40);

    SPITFTLCD24_SEND_CMD(0x2C); // 記憶體寫入
    for(row = 0; row < SPITFTLCD24_LINE_NUMBER; row++)
    {
        for(column = 0; column < SPITFTLCD24_COLUMN_NUMBER; column++)
        {
            SPITFTLCD24_SEND_DATA(0xFF);
            SPITFTLCD24_SEND_DATA(0xFF);
        }
    }
}

void SPITFTLCD24_Full(uint16_t color)
{
    uint32_t row, column;

    SPITFTLCD24_SEND_CMD(0x2a); // 設定列地址
    SPITFTLCD24_SEND_DATA(0x00); // 起始列
    SPITFTLCD24_SEND_DATA(0x00);
    SPITFTLCD24_SEND_DATA(0x00); // 結束列
    SPITFTLCD24_SEND_DATA(0xF0);

    SPITFTLCD24_SEND_CMD(0x2b); // 設定行地址
    SPITFTLCD24_SEND_DATA(0x00); // 起始行
    SPITFTLCD24_SEND_DATA(0x00);
    SPITFTLCD24_SEND_DATA(0x01); // 結束行
    SPITFTLCD24_SEND_DATA(0x40);

    SPITFTLCD24_SEND_CMD(0x2C); // 記憶體寫入
    for(row = 0; row < SPITFTLCD24_LINE_NUMBER; row++)
    {
        for(column = 0; column < SPITFTLCD24_COLUMN_NUMBER; column++)
        {
            SPITFTLCD24_SEND_DATA(color >> 8);
            SPITFTLCD24_SEND_DATA(color);
        }
    }
}

void SPITFTLCD24_Init(void)
{
    SPITFTLCD24_RESET_LOW;
    Pit0_Delay_ms(10);
    SPITFTLCD24_RESET_HIGH;
    Pit0_Delay_ms(120);

    SPITFTLCD24_SEND_CMD(0x01); // 軟體重置
    Pit0_Delay_ms(120);

    SPITFTLCD24_SEND_CMD(0x11); // 退出睡眠模式
    Pit0_Delay_ms(120);

    SPITFTLCD24_SEND_CMD(0x3A); // 65k 模式
    SPITFTLCD24_SEND_DATA(0x05);
    SPITFTLCD24_SEND_CMD(0xC5); // VCOM
    SPITFTLCD24_SEND_DATA(0x1A);
    SPITFTLCD24_SEND_CMD(0x36); // 設定方向
    SPITFTLCD24_SEND_DATA(0x00);

    SPITFTLCD24_SEND_CMD(0xb2); // Porch 設定
    SPITFTLCD24_SEND_DATA(0x05);
    SPITFTLCD24_SEND_DATA(0x05);
    SPITFTLCD24_SEND_DATA(0x00);
    SPITFTLCD24_SEND_DATA(0x33);
    SPITFTLCD24_SEND_DATA(0x33);

    SPITFTLCD24_SEND_CMD(0xb7); // 閘極控制
    SPITFTLCD24_SEND_DATA(0x05);

    SPITFTLCD24_SEND_CMD(0xBB); // VCOM
    SPITFTLCD24_SEND_DATA(0x3F);

    SPITFTLCD24_SEND_CMD(0xC0); // 電源控制
    SPITFTLCD24_SEND_DATA(0x2c);

    SPITFTLCD24_SEND_CMD(0xC2); // VDV 和 VRH 命令啟用
    SPITFTLCD24_SEND_DATA(0x01);

    SPITFTLCD24_SEND_CMD(0xC3); // VRH 設定
    SPITFTLCD24_SEND_DATA(0x0F);

    SPITFTLCD24_SEND_CMD(0xC4); // VDV 設定
    SPITFTLCD24_SEND_DATA(0x20);

    SPITFTLCD24_SEND_CMD(0xC6); // 正常模式下的幀率控制
    SPITFTLCD24_SEND_DATA(0X01);

    SPITFTLCD24_SEND_CMD(0xd0); // 電源控制 1
    SPITFTLCD24_SEND_DATA(0xa4);
    SPITFTLCD24_SEND_DATA(0xa1);

    SPITFTLCD24_SEND_CMD(0xE8); // 電源控制 1
    SPITFTLCD24_SEND_DATA(0x03);

    SPITFTLCD24_SEND_CMD(0xE9); // 均衡時間控制
    SPITFTLCD24_SEND_DATA(0x09);
    SPITFTLCD24_SEND_DATA(0x09);
    SPITFTLCD24_SEND_DATA(0x08);

    SPITFTLCD24_SEND_CMD(0xE0); // 設定伽瑪
    SPITFTLCD24_SEND_DATA(0xD0);
    SPITFTLCD24_SEND_DATA(0x05);
    SPITFTLCD24_SEND_DATA(0x09);
    SPITFTLCD24_SEND_DATA(0x09);
    SPITFTLCD24_SEND_DATA(0x08);
    SPITFTLCD24_SEND_DATA(0x14);
    SPITFTLCD24_SEND_DATA(0x28);
    SPITFTLCD24_SEND_DATA(0x33);
    SPITFTLCD24_SEND_DATA(0x3F);
    SPITFTLCD24_SEND_DATA(0x07);
    SPITFTLCD24_SEND_DATA(0x13);
    SPITFTLCD24_SEND_DATA(0x14);
    SPITFTLCD24_SEND_DATA(0x28);
    SPITFTLCD24_SEND_DATA(0x30);

    SPITFTLCD24_SEND_CMD(0xE1); // 設定伽瑪
    SPITFTLCD24_SEND_DATA(0xD0);
    SPITFTLCD24_SEND_DATA(0x05);
    SPITFTLCD24_SEND_DATA(0x09);
    SPITFTLCD24_SEND_DATA(0x09);
    SPITFTLCD24_SEND_DATA(0x08);
    SPITFTLCD24_SEND_DATA(0x03);
    SPITFTLCD24_SEND_DATA(0x24);
    SPITFTLCD24_SEND_DATA(0x32);
    SPITFTLCD24_SEND_DATA(0x32);
    SPITFTLCD24_SEND_DATA(0x3B);
    SPITFTLCD24_SEND_DATA(0x14);
    SPITFTLCD24_SEND_DATA(0x13);
    SPITFTLCD24_SEND_DATA(0x28);
    SPITFTLCD24_SEND_DATA(0x2F);

    SPITFTLCD24_SEND_CMD(0x20);
    Pit0_Delay_ms(120);
    SPITFTLCD24_SEND_CMD(0x29);
}



但是效果不理想，刷屏太慢，因此還在想其他的辦法。


2. CAN 通訊



調試CAN通信這個環節不是很順利，即使到最後能輸出波形，但仍然無法與其他廠商的MCU成功進行CAN通信。


調試CAN通信需要先啟用前置模組Siul2_Icu模組，並添加兩個通道：





新增硬體通道16和17：





引腳則是選用PTA6和PTA7作為CAN0的輸出：





PTA6和PTA7位於J31母座上。




對於FlexCAN的配置則是參考論壇的帖子進行的，自己改了一些參數，設定1MB長度，Payload 8字節，協議時鐘和波特率參數則是直接照抄：




將PTA6和PTA7引腳與CAN收發模組進行連接：





初始化和CAN傳送程式碼如下：



Siul2_Icu_Ip_Init(0, &Siul2_Icu_Ip_0_Config_PB);

Siul2_Icu_Ip_EnableInterrupt(0, (*Siul2_Icu_Ip_0_Config_PB.pChannelsConfig)[0].hwChannel);

Siul2_Icu_Ip_EnableInterrupt(0, (*Siul2_Icu_Ip_0_Config_PB.pChannelsConfig)[1].hwChannel);

Siul2_Icu_Ip_EnableNotification(0, (*Siul2_Icu_Ip_0_Config_PB.pChannelsConfig)[0].hwChannel);

Siul2_Icu_Ip_EnableNotification(0, (*Siul2_Icu_Ip_0_Config_PB.pChannelsConfig)[1].hwChannel);

FlexCAN_Ip_Init(0, &FlexCAN_State0, &FlexCAN_Config0);

FlexCAN_Ip_SetStartMode(0);

while(1)
{
    FlexCAN_Ip_Send(0, TX_MB_IDX, &CAN_NODE_0_TX_MB0_Config, FLEXCAN_MSG_ID, (uint8_t *)&dummyData);
    Pit0_Delay_ms(100);
    printf("FlexCAN_Ip_Send.\n");
}



將示波器的探頭接入CANH和CANL兩個輸出引腳：



文章來自「S32K312 開發板評測活動」測評者：李明



歡迎在部落格文章下方留言評論，我們會及時回覆您的問題。

如有更多需求，歡迎聯繫大聯大世平集團 ATU 部門：atu.sh@wpi-group.com 作者：WPIg

更多資訊，請掃碼關注我們！





★博文內容均由個人提供，與平台無關，如有違法或侵權，請與網站管理員聯繫。

★文明上網，請理性發言。內容一周內被舉報5次，發文人進小黑屋喔~

參考來源

:

評論
