ma35d1 yocto 編譯環境設置
1. Ubuntu主機安裝包
$ sudo apt-get install gawk wget git-core diffstat unzip texinfo gcc-multilib \
build-essential chrpath socat cpio python python3 python3-pip python3-pexpect \
xz-utils debianutils iputils-ping libsdl1.2-dev xterm curl
2. 更新 packages list
$ sudo apt-get update
3. 安裝一些先決條件包，讓 apt 通過 HTTPS 使用包
$ sudo apt install apt-transport-https ca-certificates curl software-properties-common
4. 將官方 Docker 存儲庫的 Docker 官方 GPG 密鑰添加到您的系統
$ curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo apt-key add
5. 設置穩定存儲庫，將 Docker 存儲庫添加到 APT 源
$ sudo add-apt-repository "deb [arch=amd64] https://download.docker.com/linux/ubuntu focal stable"
6. 使用新添加的repo中的 Docker 包更新包資料庫
$ sudo apt-get update
7. 安裝 Docker
$ sudo apt-get install docker-ce docker-ce-cli containerd.io
8.下載ma35d1 Docker 腳本
$ git clone https://github.com/OpenNuvoton/MA35D1_Docker_Script.git
9. 進入docker-yocto文件夾，構建docker鏡像。大約需要一個小時才能獲得710個文件
$ ./build.sh
10. 輸入docker image，你的命令行頭就像這樣
sac-m@53557c92ac53:~$
$ ./join.sh
nvt_sac-m
sac-m@53557c92ac53:~$
11. 在 ~/share 下創建ma35d1-yocto目錄夾
sac-m@3ad4f18d34a8:~/share$ mkdir ma35d1-yocto
12. 第一次使用repo時，需要設置GIT環境
sac-m@53557c92ac53:~/share/ma35d1-yocto$ git config --global user.email "test@test.test.test"
sac-m@53557c92ac53:~/share/ma35d1-yocto$ git config --global user.name "test"
sac-m@53557c92ac53:~/share/ma35d1-yocto$ git config --global http.sslverify false
13. 到 ~/share/ma35d1-yocto下設置 repo init
sac-m@53557c92ac53:~/share/ma35d1-yocto$ repo init -u https://github.com/OpenNuvoton/MA35D1_Yocto-v3.1.3.git -m meta-ma35d1/base/ma35d1.xml
14. 下載ma35d1 yocto project
sac-m@53557c92ac53:~/share/ma35d1-yocto$ repo sync
yocto下構建ma35d1鏡像
1. 設置構建配置，DISTRO選項我們通常使用nvt-ma35d1-directfb
~/yocto$ DISTRO=nvt-ma35d1-directfb MACHINE=numaker-iot-ma35d16f90 source sources/init-build-env build-iot-ma35d16f90
如果您曾經退出容器並想再次構建圖像，請source一下環境變量即可
~/ma35d1-yocto$ source sources/init-build-env build-iot-ma35d16f90/
2.選擇要構建的鏡像進行bitbake

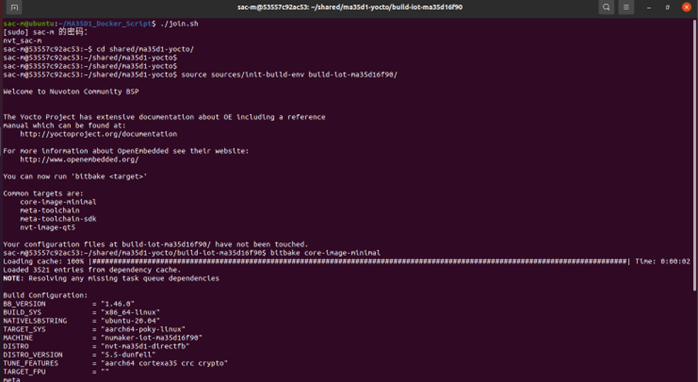

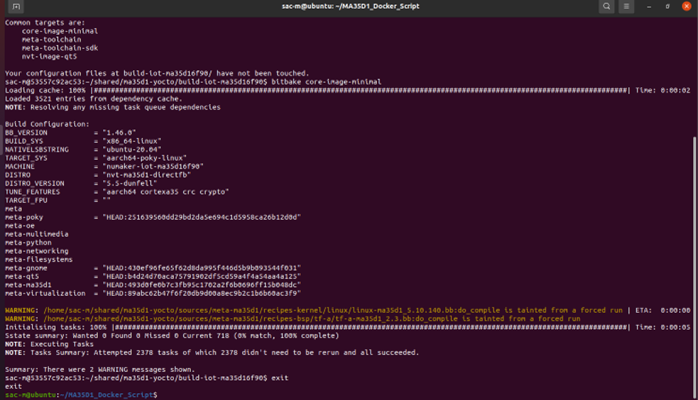

~/ma35d1-yocto$ bitbake core-image-minimal
構建過程：
構建輸出相關的文檔：

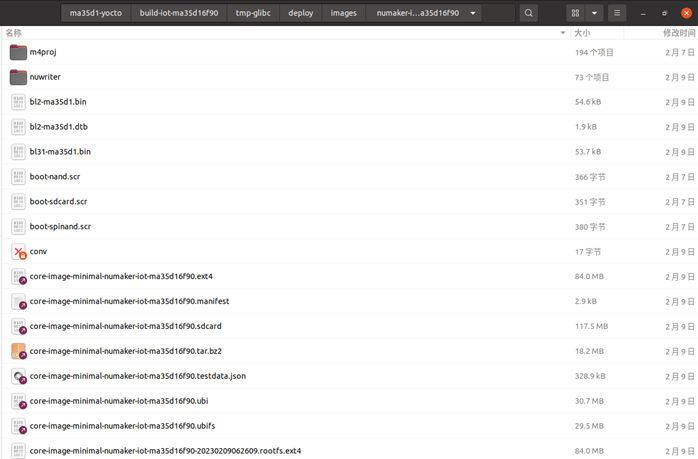

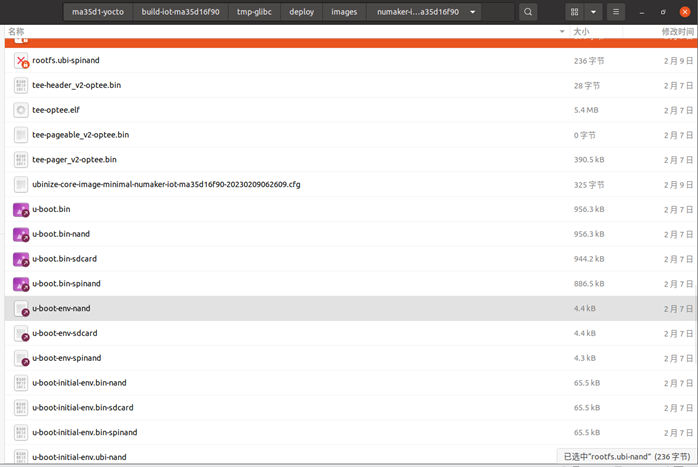

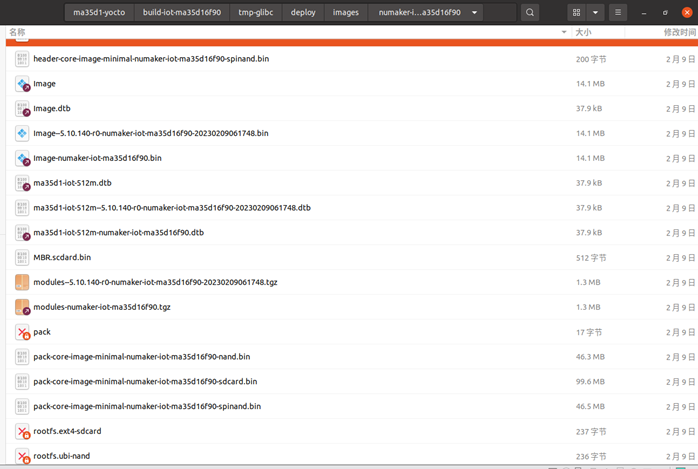

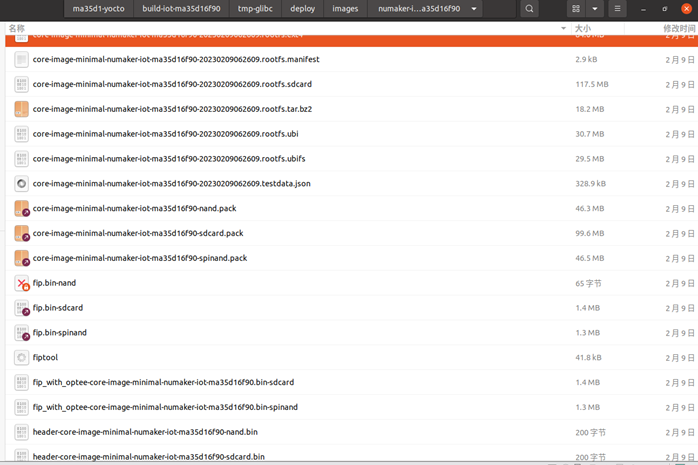

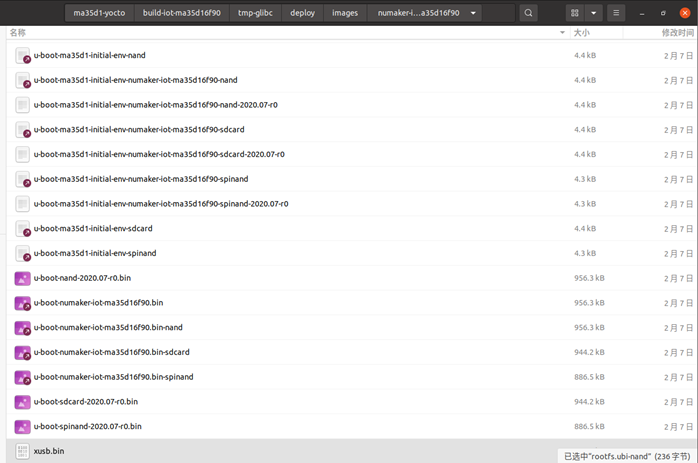

將image 文件燒錄到EVB 運行後的log:
MA35D1 IBR 20211029
RTC power on
NAND Boot
header0 CRC OK!
finish
INFO: ma35d1 config setup
INFO: CA-PLL is 800000000 Hz
POR: 0xb00
INFO: Boot from NAND
INFO: NAND: Size 1024MB, Page 2048, pages per block 64, oob size 64, bit correct 8
NOTICE: BL2: v2.3(release):tc-v1.0.001-25-gba98f9b83-dirty
NOTICE: BL2: Built : 02:57:30, Feb 9 2023
INFO: BL2: Doing platform setup
INFO: BL2: Loading image id 3
INFO: Loading image id=3 at address 0x28025000
INFO: Image id=3 loaded: 0x28025000 - 0x280321a1
INFO: BL2: Loading image id 4
INFO: Loading image id=4 at address 0x9f800000
INFO: Image id=4 loaded: 0x9f800000 - 0x9f80001c
INFO: OPTEE ep=0x9f800000
INFO: OPTEE header info:
INFO: magic=0x4554504f
INFO: version=0x2
INFO: arch=0x1
INFO: flags=0x0
INFO: nb_images=0x1
INFO: BL2: Loading image id 21
INFO: Loading image id=21 at address 0x9f800000
INFO: Image id=21 loaded: 0x9f800000 - 0x9f85f558
INFO: BL2: Skip loading image id 22
INFO: BL2: Loading image id 5
INFO: Loading image id=5 at address 0x85500000
INFO: Image id=5 loaded: 0x85500000 - 0x855e975f
NOTICE: BL2: Booting BL31
INFO: Entry point address = 0x28025000
INFO: SPSR = 0x3cd
INFO: ma35d1 config setup
INFO: CA-PLL is 800000000 Hz
NOTICE: BL31: v2.3(release):tc-v1.0.001-25-gba98f9b83-dirty
NOTICE: BL31: Built : 02:57:30, Feb 9 2023
INFO: ARM GICv2 driver initialized
INFO: BL31: Initializing runtime services
INFO: BL31: Initializing BL32
INFO: BL31: Preparing for EL3 exit to normal world
INFO: Entry point address = 0x85500000
INFO: SPSR = 0x3c9
U-Boot 2020.07 (Feb 07 2023 - 07:39:44 +0000)
CPU: Nuvoton MA35D1
Model: Nuvoton MA35D1 U-boot
DRAM: 112 MiB
WDT: Not found!
NAND: 1024 MiB
MMC: sdhci@40190000: 0
Loading Environment from NAND... OK
In: serial@40700000
Out: serial@40700000
Err: serial@40700000
Net:
Warning: ethernet@40120000 using MAC address from DT
eth0: ethernet@40120000 [PRIME]
Warning: ethernet@40130000 using MAC address from DT
, eth1: ethernet@40130000
Hit any key to stop autoboot: 0
Booting from nand ... ...
NAND read: device 0 offset 0x400000, size 0x1800000
25165824 bytes read: OK
NAND read: device 0 offset 0x3c0000, size 0x40000
262144 bytes read: OK
## Flattened Device Tree blob at 85000000
Booting using the fdt blob at 0x85000000
Loading Device Tree to 00000000864dd000, end 00000000864e93e3 ... OK
Starting kernel ...
