PS8925 _ PCI Express® Gen 4 16Gbps 4-Lane Retimer

 Parade PS8925 是一款4 通道雙向Retimer（使用總共 8 個數據通道），支持 PCIe® (PCI Express®) Gen 4應用，傳輸速率最高可達 16Gbps。

 PS8925具有低延遲能力，是workstations和Server等應用的理想選擇。

作為PCIe Gen4 應用線路中的 Retimer，PS8925 消除了可能因為 Cross-Talking或系統雜訊引起錯誤的信號失真。並且可以補償PCIe協會規範內之PCIe Gen4應用的損耗 (扣除 CPU Package損耗5dB加上PS8925的Package損耗為3dB 後的20dB)，產品應用中可能造成PCIe Gen4信號損耗因素包括 PCIe Cable、PCB traces和connector。

Parade PS8925增強了PCIe Gen4數據傳輸的可靠性並可支援更長的 PCIe Cable或PCB走線，從而實現系統可擴展性。

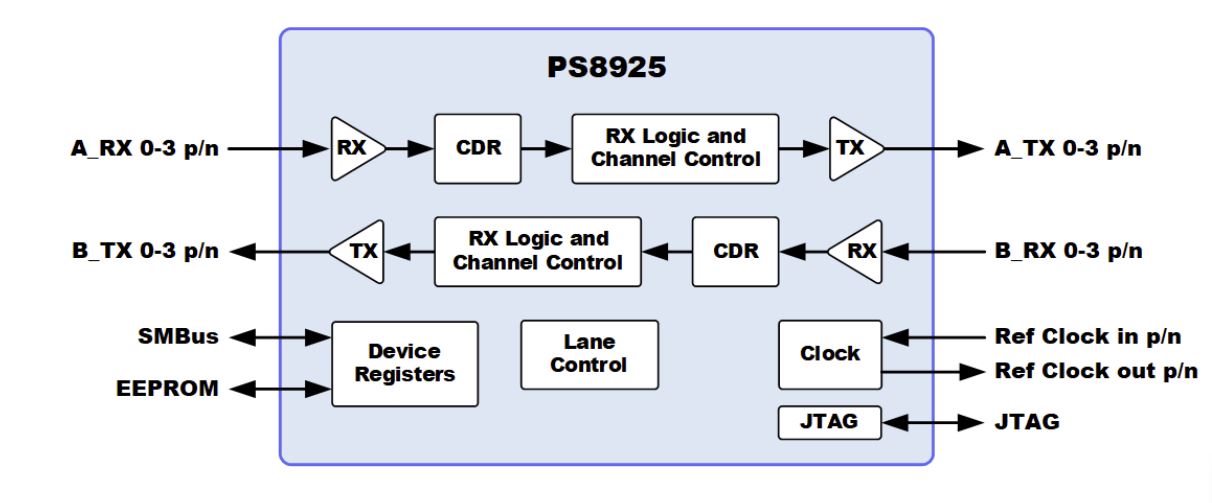

實現示例：

特點：

• PCI Express 4.0 spec compliant retimer
• Supports PCI Express operation at 2.5Gbps, 5Gbps, 8 Gbps and 16Gbps
• Supports 4 bidirectional lanes using 8 differential channels
• Compliant with Intel publication PCI Express 4.0 Retimer Supplemental Features and Standard BGA Footprint (Revision 004, June 2018)
• Low power consumption
• No heat sink required for operation
• Adaptive CTLE and DFE equalizers compensate up to 30dB channel loss at 8GHz
• Configurable modes of operation
• FPR – Full Protocol Retimer
• PABR – Protocol Aware Bit-level Retimer
• Near Zero Latency; 2ns typical in PABR mode
• Enhanced per-channel voltage and timing margining
• Supports dynamic link configuration; Single Link 1×1, 1×2, 1×4; Dual links 2×1, 2×2
• Autonomous segmented link training in FPR mode
• Supports lane reversal and hot plug
• Supports SMBus configuration and external EEPROM configuration loading
• 14 selectable addresses for SMBus control
• Supports power saving states; L1 (standby) and L1PM (sleep)
• Supports JTAG debug port; Follows IEEE 1149.1 & IEEE 1149.6
• 9V and 1.8V power supplies
• 5mm x 10mm 146-ball BGA package
• -40 to +85 deg. C operating temperature range



應用：

• Servers
• Data Centers and Storage
• Workstations
