PWM 基本原理:

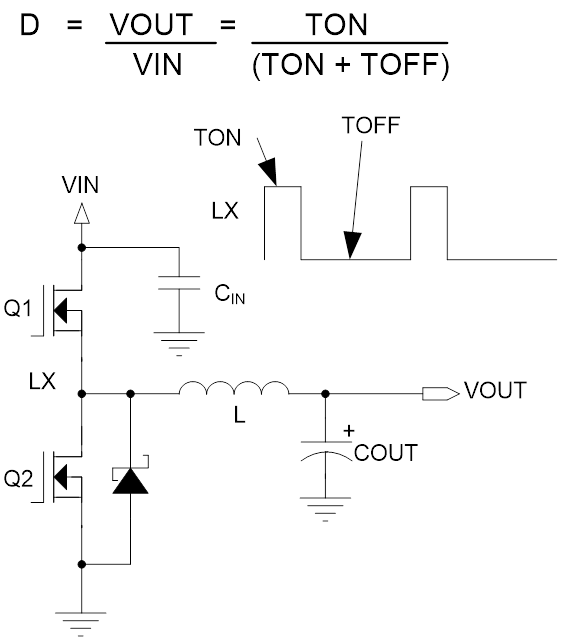

VOUT = VIN * Duty Cycle (D)
D = VOUT/VIN = TON/(TON + TOFF)
L/COUT filters out pulses to get average DC value
As VIN increases, Duty Cycle decreases, to maintain constant VOUT

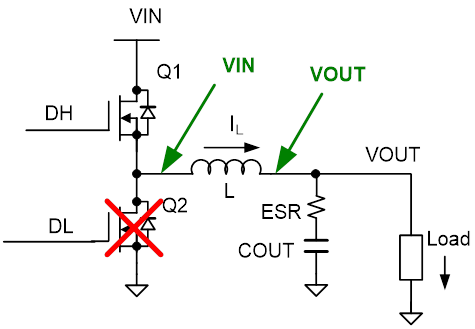

上橋導通時間
- Voltage across inductor = (VIN – VOUT)

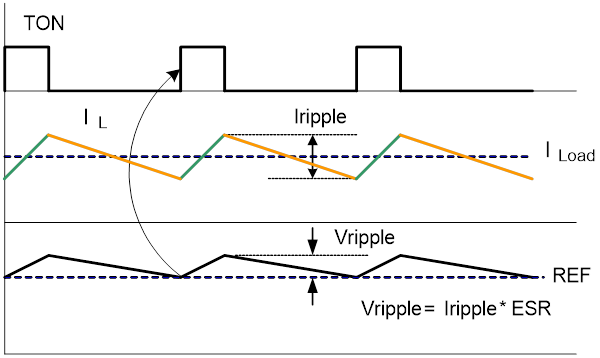

- Up-ripple current = (VIN – VOUT) × TON / L
上橋截止下橋導通時間
- Voltage across inductor = -VOUT
- Down-ripple current = -VOUT × TOFF / L
輸出紋波電壓在FB Pin至少10mV以上 ( 參考Semtech SC461 )
由於電阻分壓器的關係,FB的紋波小於VOUT的紋波
可以使用電容CTOP從VOUT到FB提供更多紋波
由此得知,當佔空比越大,FB pin 得到的紋波電壓越小,則電容CTOP需要更大
